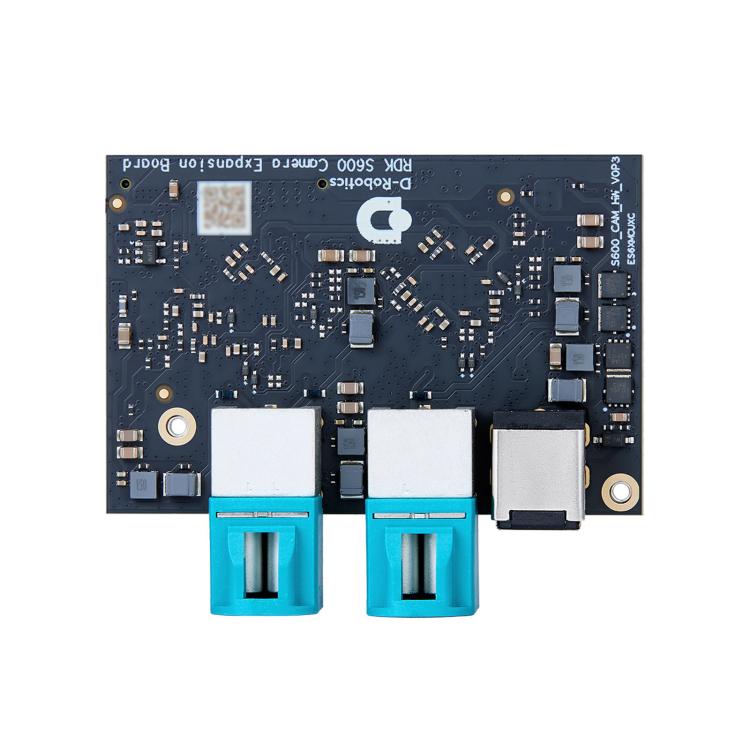

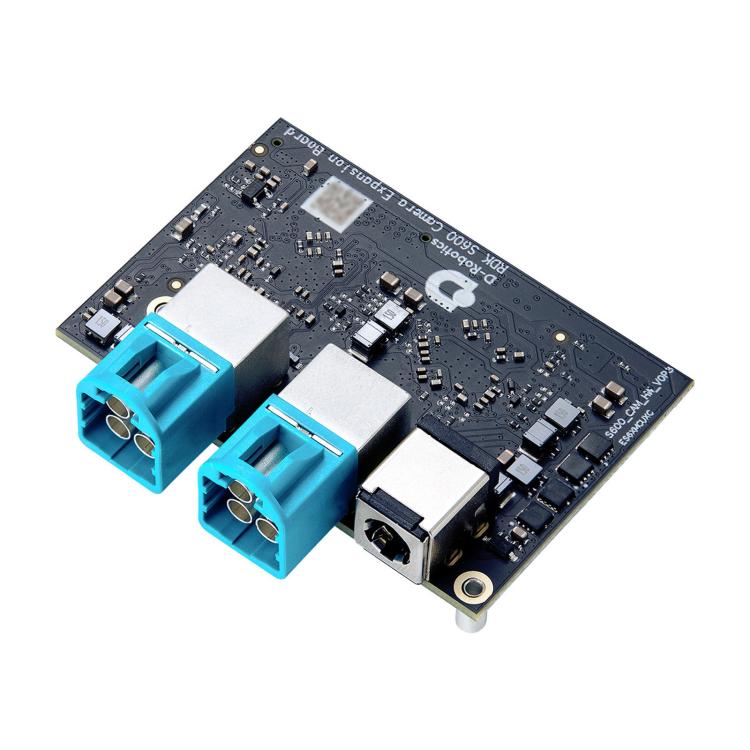

1. The RDK S600 Camera Expansion Board is a core module of the D-Robotics RDK S600 series developer kit. It is designed to convert the camera expansion interface on the developer kit into GMSL interfaces. The expansion board provides an 8-channel GMSL camera interface, making it convenient for developers to perform functional verification and secondary development.

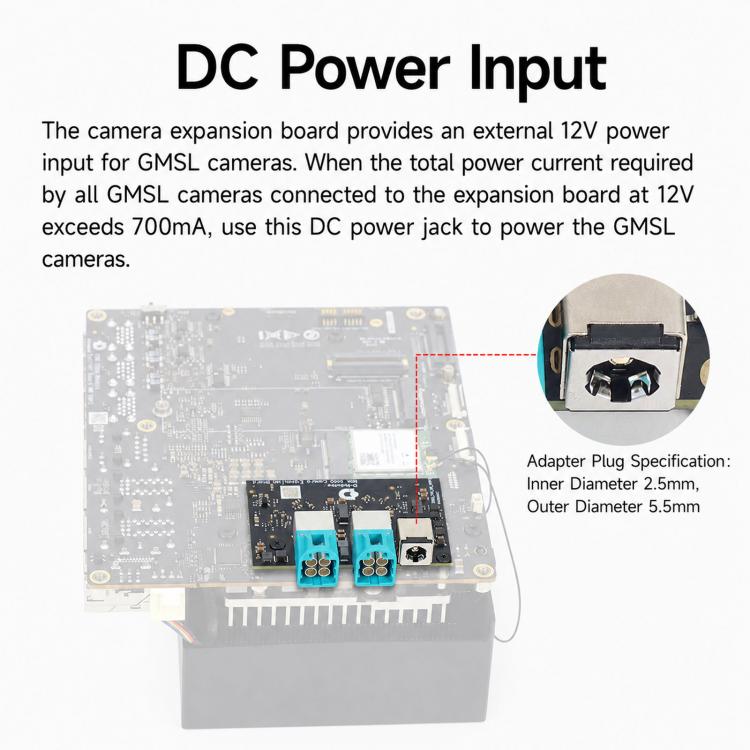

2. The camera expansion board is equipped with an external 12V power input interface for the GMSL cameras. When the total supply current demand of all GMSL cameras connected to the expansion board exceeds 700 mA at a voltage of 12V, the GMSL cameras must be powered through this DC power jack.

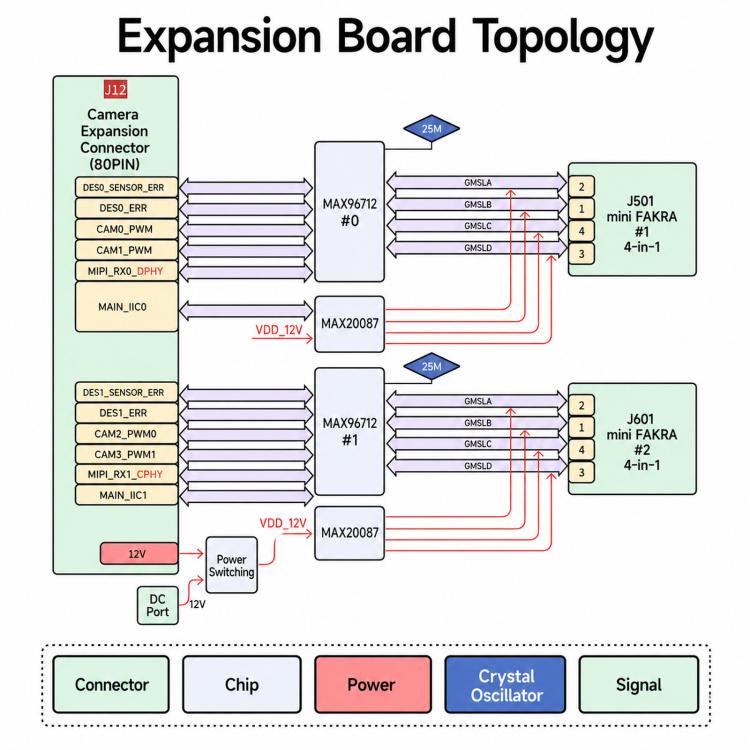

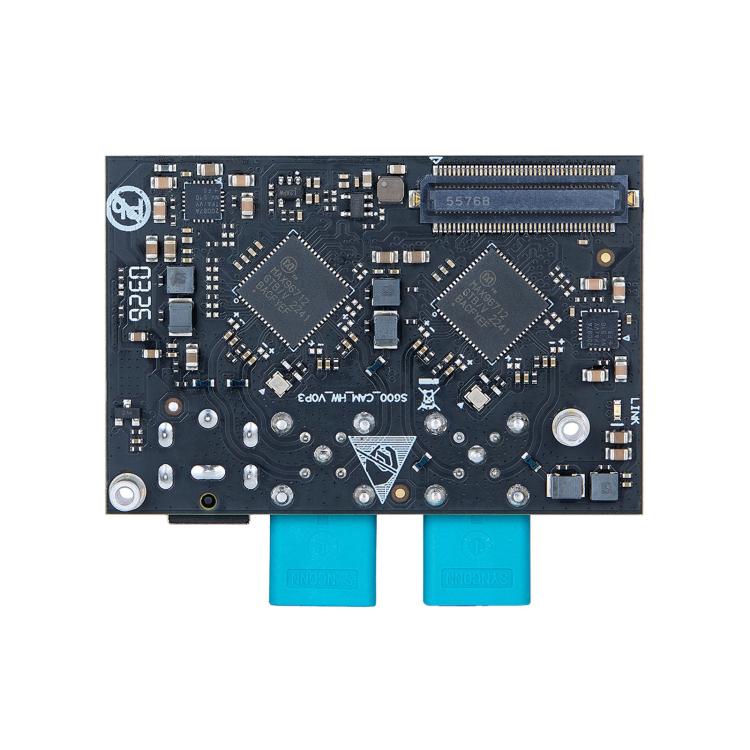

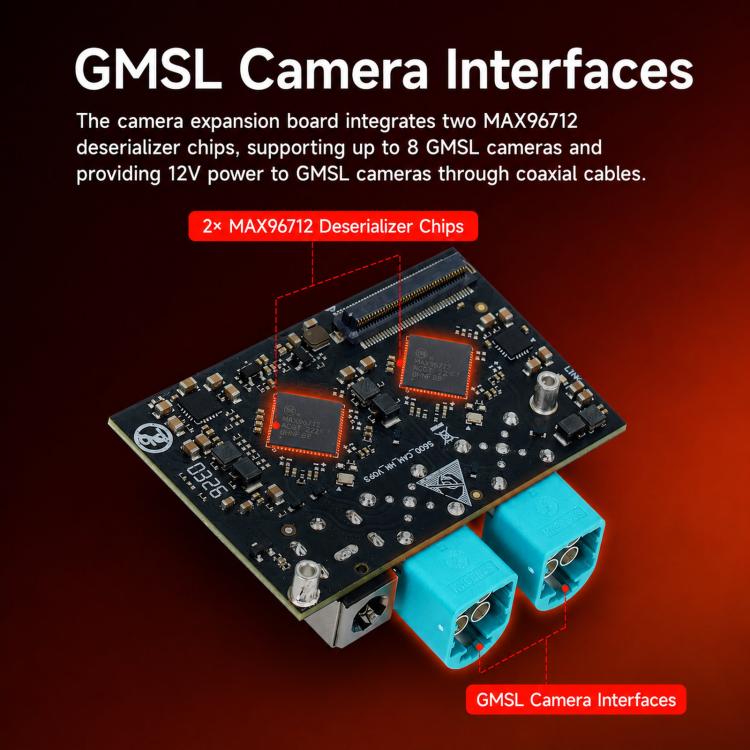

3. The camera expansion board integrates 2 x Maxim MAX96712 deserializer chips, enabling the connection of up to 8-channel GMSL cameras, and can provide 12V power to the GMSL cameras through coaxial cables.

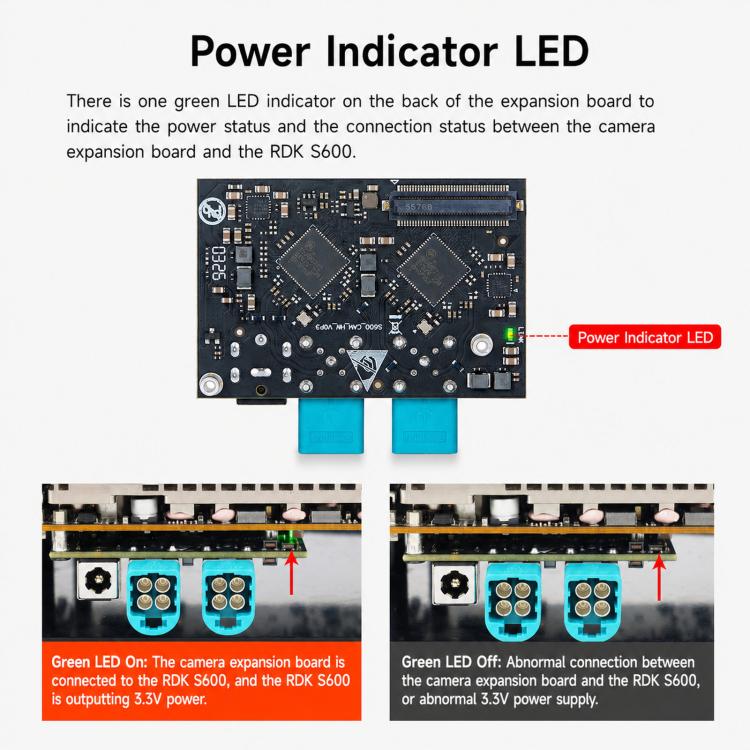

4. Power Indicator: The back of the expansion board features 1 green LED indicator to show the power status and the connection state between the camera expansion board and the RDK S600 mainboard.

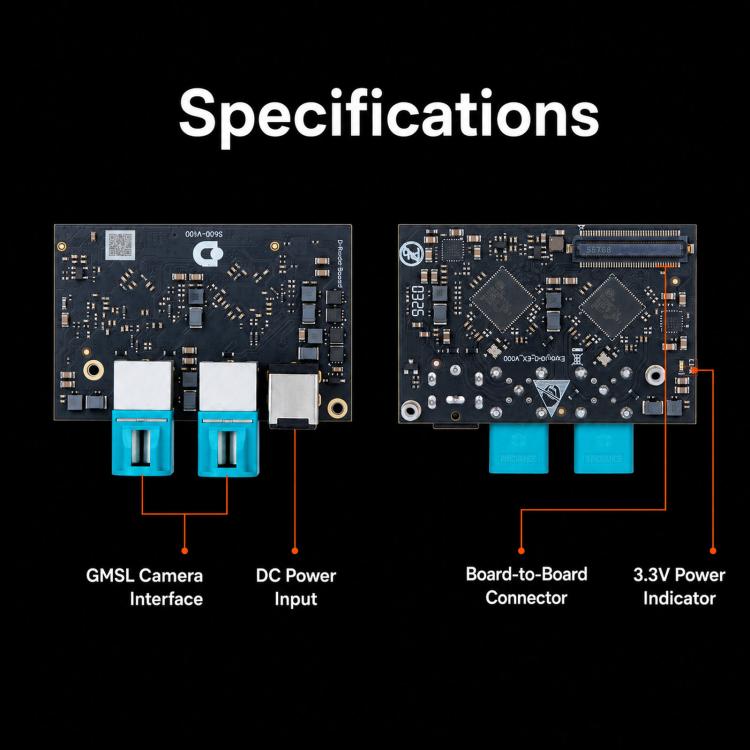

6. Deserializer: 2 x Maxim MAX96712
7. GMSL Connector: 2 x FAKRA-Mini 4-in-1
8. External Power Supply: 12V DC, used only when the current demand exceeds 2.4 A, with a maximum of 4.8 A.
9. Operating Temperature: 0 to 65 degrees Celsius
10. Product Dimensions: 60 mm x 50.48 mm x 22.29 mm
11. Product Weight: 34.7 g
Specification:
| Package Weight |
| One Package Weight |
0.09kgs / 0.20lb |
| One Package Size |
10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch |
| Carton Weight |
9.50kgs / 20.94lb |
| Carton Size |
42cm * 42cm * 20cm / 16.54inch * 16.54inch * 7.87inch |
| Loading Container |
20GP: 755 cartons * 100 pcs = 75500 pcs
40HQ: 1754 cartons * 100 pcs = 175400 pcs |
|
