1. Pixels: 5MP
2. Sensor: OV5640
3. Interface: USB 2.0
4. Camera: Sensor size 1/4 inch
5. Aperture (F): 2.8
6. Focal length (EFL): 3.29 mm
7. Field of view (FOV): 68 degree
8. Distortion: Less than 1%
9. Focusing(C): FF Fixed-Focus
10. Image Format support: MJPG, YUV422
11. Static image resolution: 2592 x 1944
12. Video recording: 15 FPS 2592 x 1944, 30 FPS 1920 x 1080, 30 FPS 1280 x 720
13. Operating voltage: 5V +/- 5%
14. Camera size: 8.5 x 8.5 mm

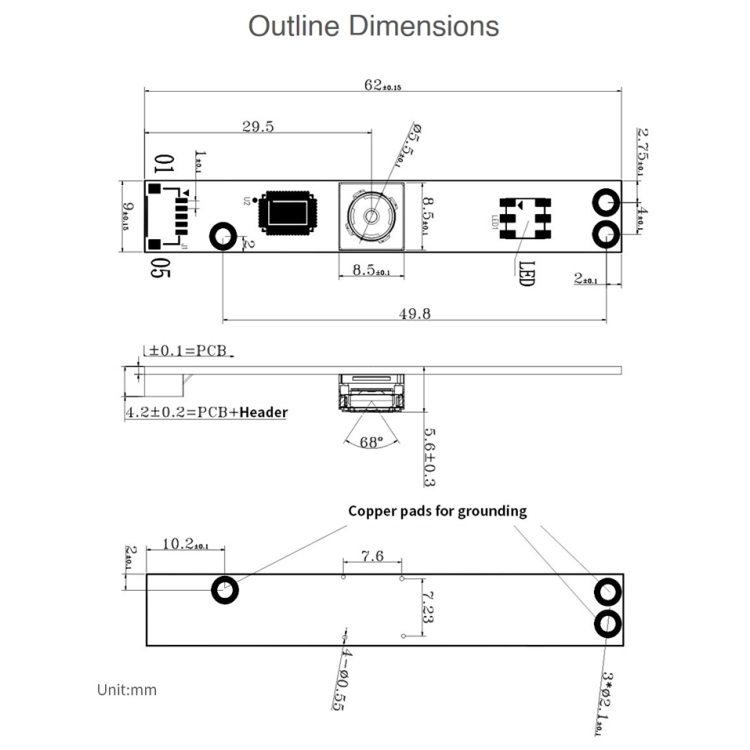

15. Module size: 9 x 62 mm
Specification:
| Package Weight |
| One Package Weight |
0.04kgs / 0.10lb |
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch |
| Carton Weight |
8.00kgs / 17.64lb |
| Carton Size |
45cm * 32cm * 32cm / 17.72inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 578 cartons * 200 pcs = 115600 pcs
40HQ: 1343 cartons * 200 pcs = 268600 pcs |
|
