1. Requires Luckfox PicoKVM for remote power management.

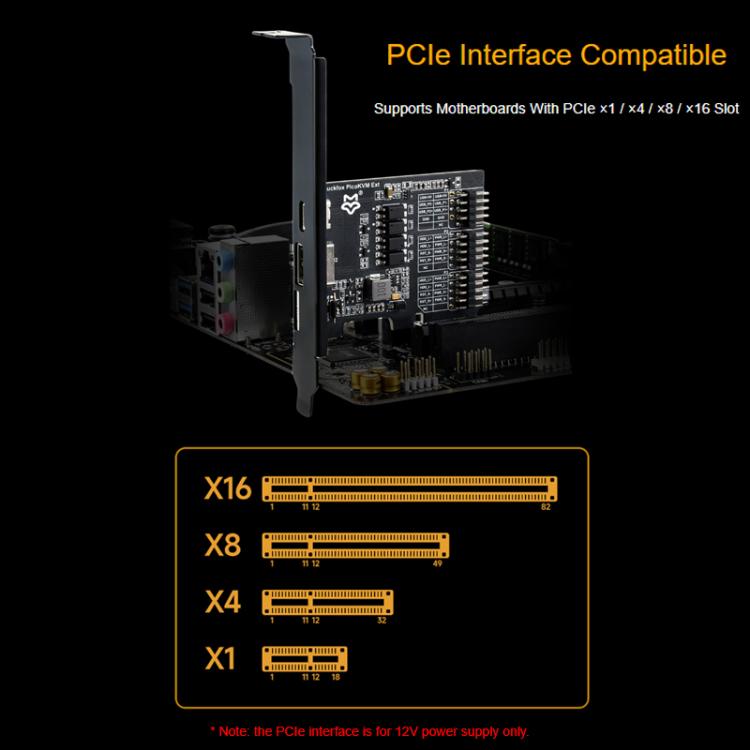

2. Universal PCIe interface, supports motherboards with PCIe x1/x4/x8/x16 slots. Note: PCIe interfaces are for 12V power only.

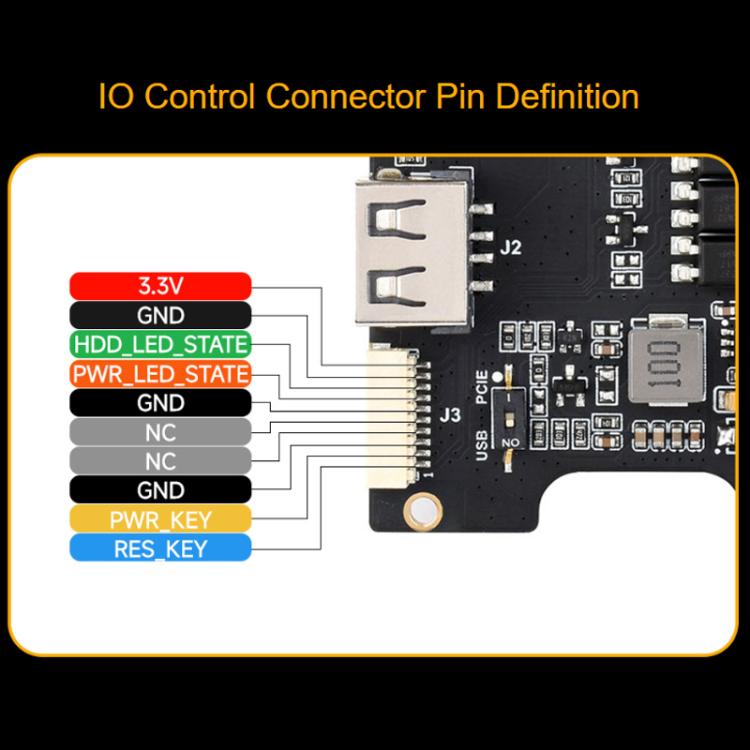

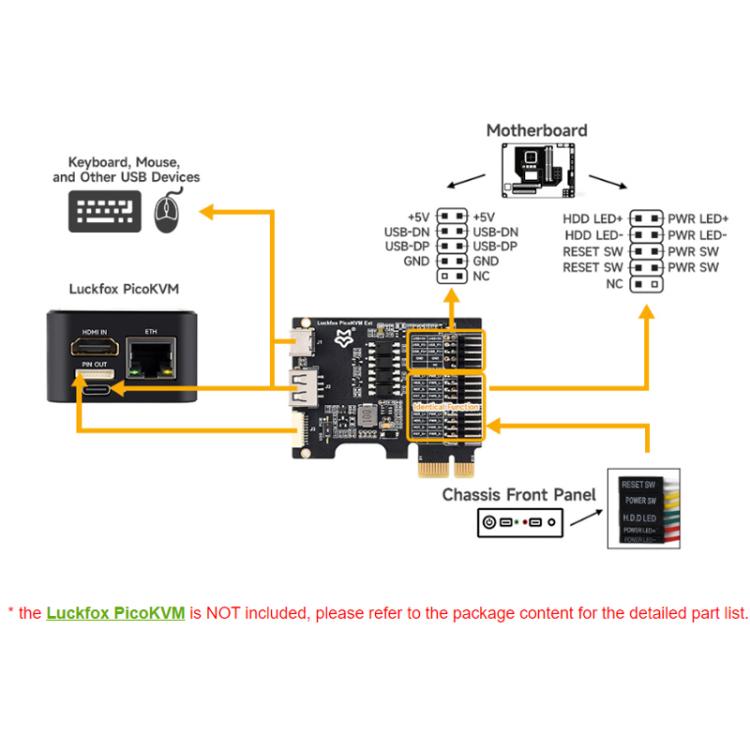

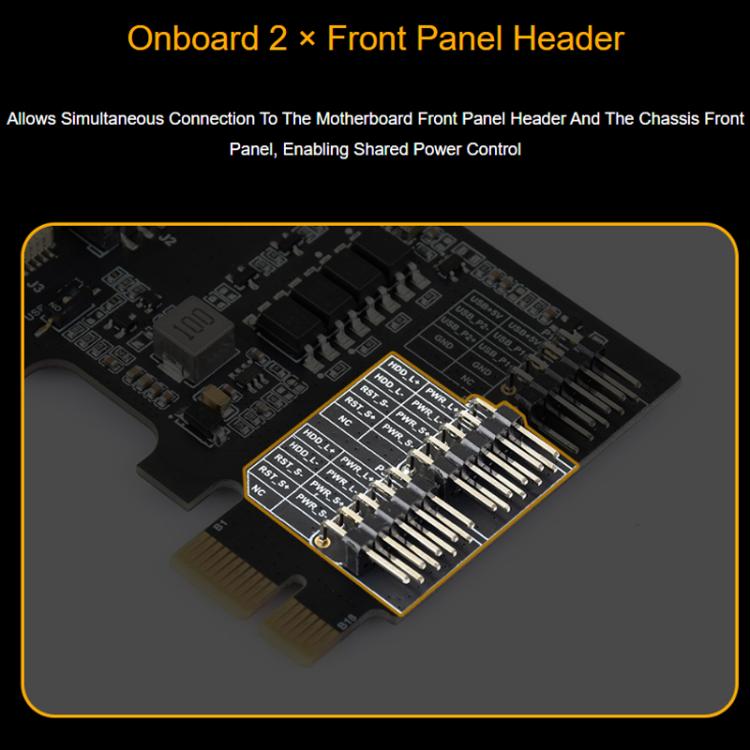

3. Two front panel I/O connectors, allowing simultaneous connection to both front panel I/O ports and chassis panels for power control.

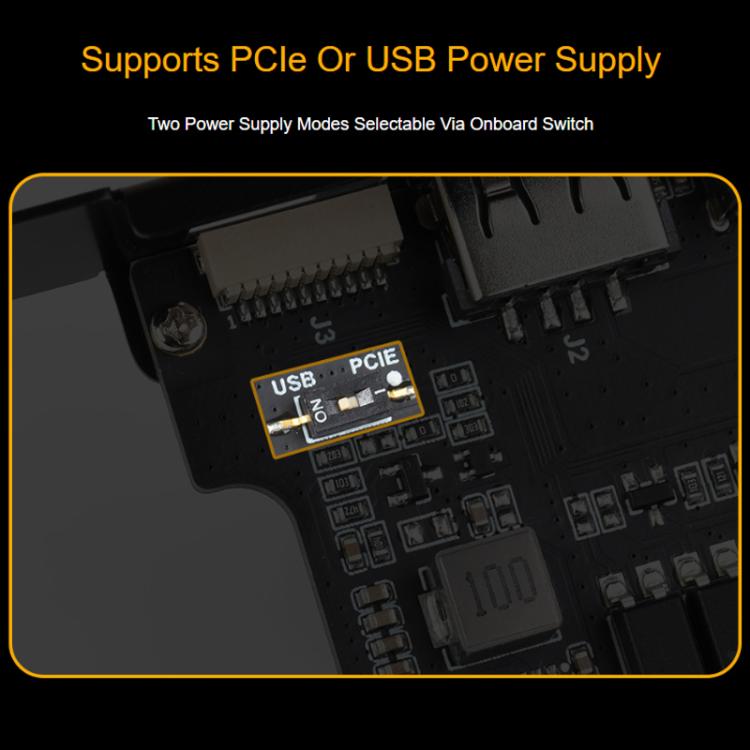

4. Supports both PCIe and USB power delivery modes, switchable via a switch.
5. Provides USB-A and USB-C ports via motherboard USB connectors, allowing connection to Luckfox PicoKVM or other USB devices.

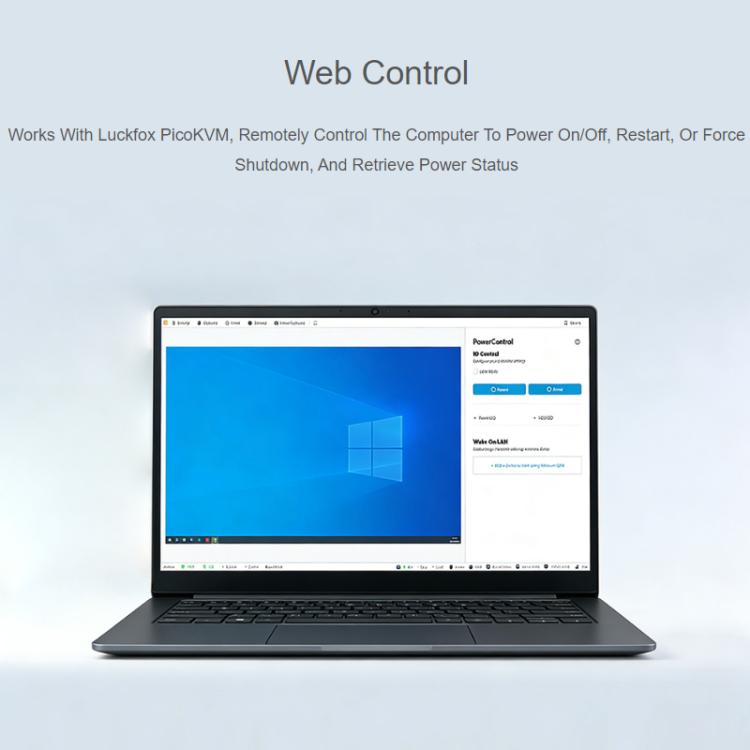

6. Web-based control, enabling remote power control (power on/off, restart, forced shutdown) and power status monitoring with Luckfox PicoKVM.

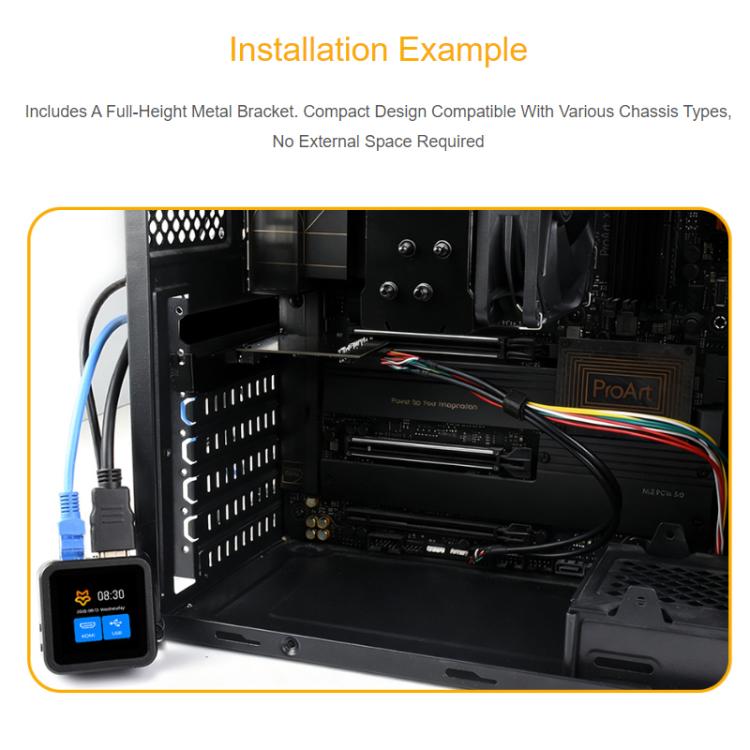

7. Compact form factor adaptable to various chassis structures, saving external space.

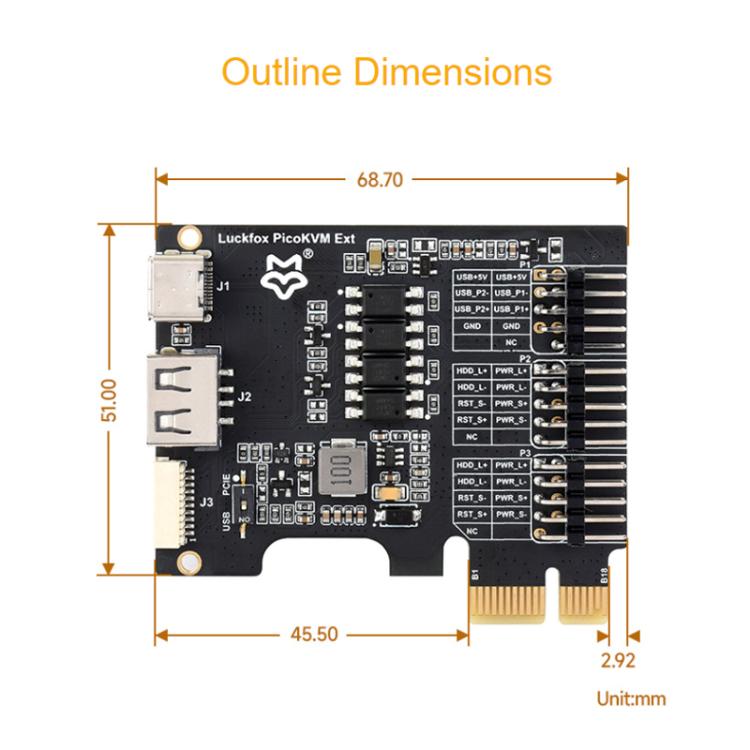

8. Dimensions: 68.7 x 51 mm
Specification:
| Package Weight |
| One Package Weight |
0.05kgs / 0.12lb |
| One Package Size |
10cm * 8cm * 4cm / 3.94inch * 3.15inch * 1.57inch |
| Carton Weight |
7.50kgs / 16.53lb |
| Carton Size |
42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch |
| Loading Container |
20GP: 549 cartons * 128 pcs = 70272 pcs
40HQ: 1275 cartons * 128 pcs = 163200 pcs |
|
