Features

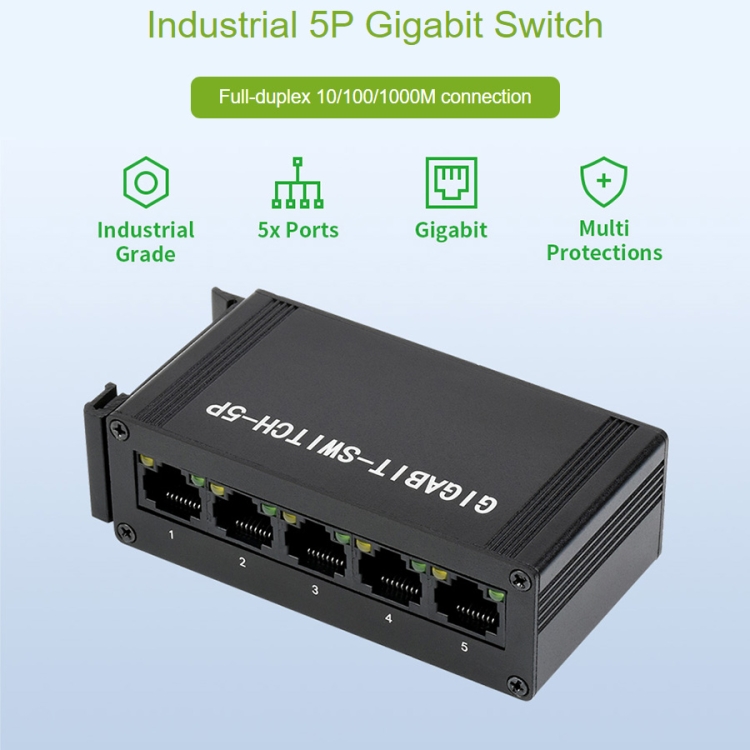

1. Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
2. Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
3. Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
4. Allow forwarding 9216 bytes huge data packet on linear speed
5. Over-voltage protection, effectively preventing damages caused by other high voltage power supply

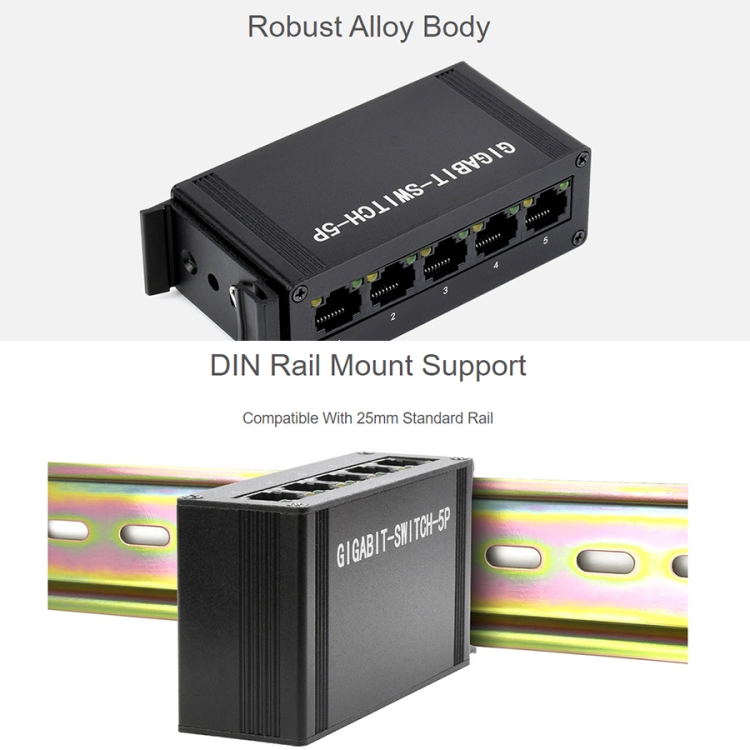

6. Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing

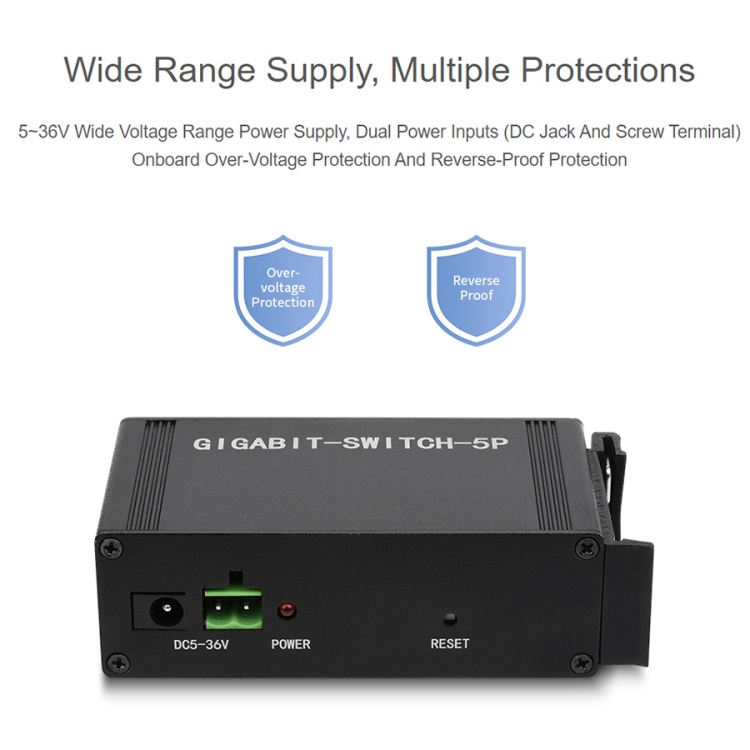

7. 5~36V wide voltage power supply, dual power interface (DC interface and terminal block) onboard overvoltage protection, reverse connection protection.
8. Support 25mm standard rail.
Package List
1. Gigabit-Switch-5P x 1
2. Power supply screw terminal x 1
3. 12V 1A power adapter x 1
Specification:
| Package Weight |
| One Package Weight |
0.24kgs / 0.52lb |
| One Package Size |
15cm * 12cm * 5cm / 5.91inch * 4.72inch * 1.97inch |
| Carton Weight |
18.50kgs / 40.79lb |
| Carton Size |
50cm * 52cm * 32cm / 19.69inch * 20.47inch * 12.6inch |
| Loading Container |
20GP: 320 cartons * 80 pcs = 25600 pcs
40HQ: 744 cartons * 80 pcs = 59520 pcs |
|
