1. Designed for Jetson Orin Nano / NX developer kits, featuring precise cutouts and ample clearance for various interfaces.
2. Combines an aluminum alloy finned enclosure with a copper heat pipe at the base to achieve silent, efficient, fanless heat dissipation.
3. Features an onboard illuminated metal power switch, providing clear status indication and convenient power control.

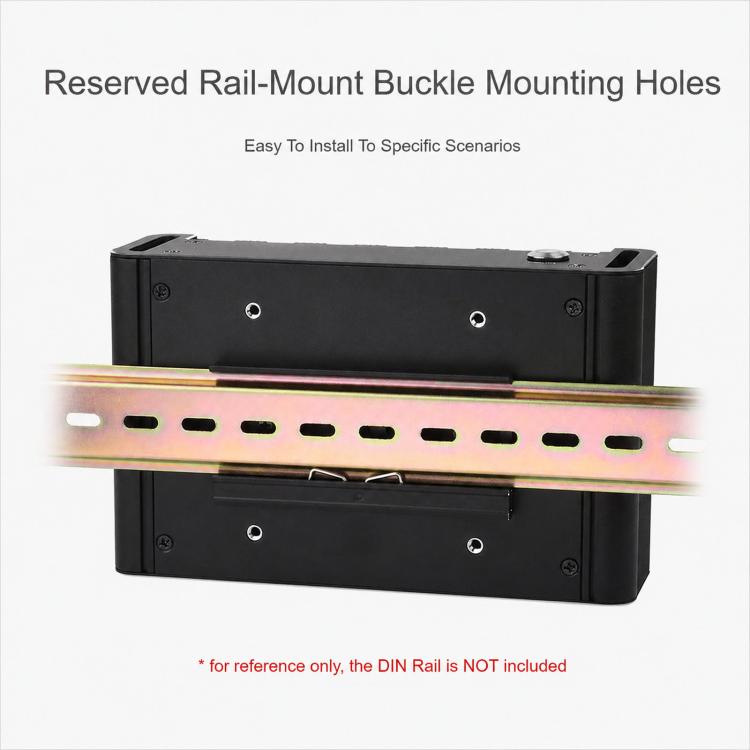

4. Includes mounting holes for standard industrial DIN rails, enabling installation in diverse deployment environments.
5. Precision cutouts for the DC power input, DisplayPort, USB, Ethernet, Type-C, and dual SMA antenna ports balance interface protection with ease of access.

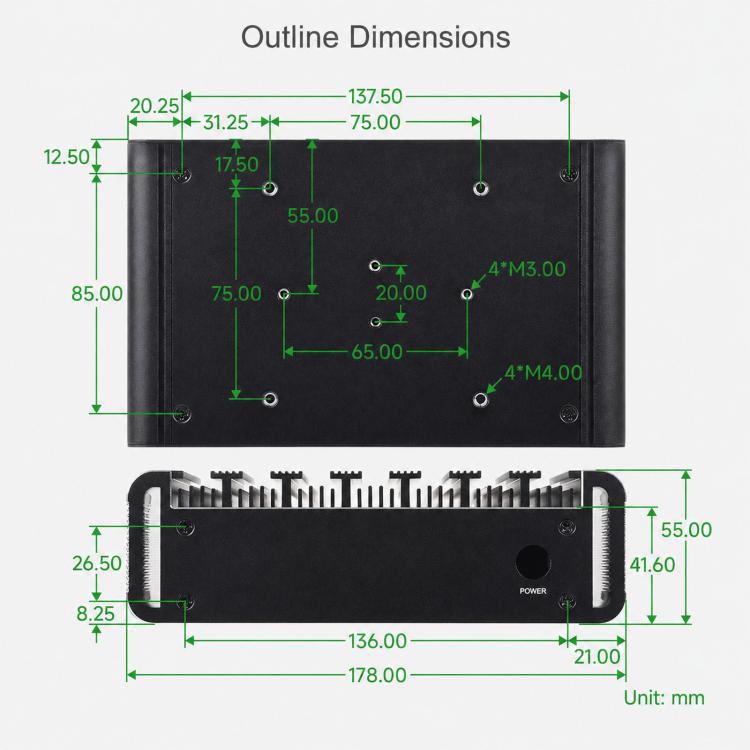

6. Dimensions: Approx. 17.8 x 8.5 x 5.5 cm.
Specification:
| Package Weight |
| One Package Weight |
0.50kgs / 1.11lb |
| One Package Size |
22cm * 18cm * 8cm / 8.66inch * 7.09inch * 3.15inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
46cm * 42cm * 37cm / 18.11inch * 16.54inch * 14.57inch |
| Loading Container |
20GP: 373 cartons * 20 pcs = 7460 pcs
40HQ: 865 cartons * 20 pcs = 17300 pcs |
|
