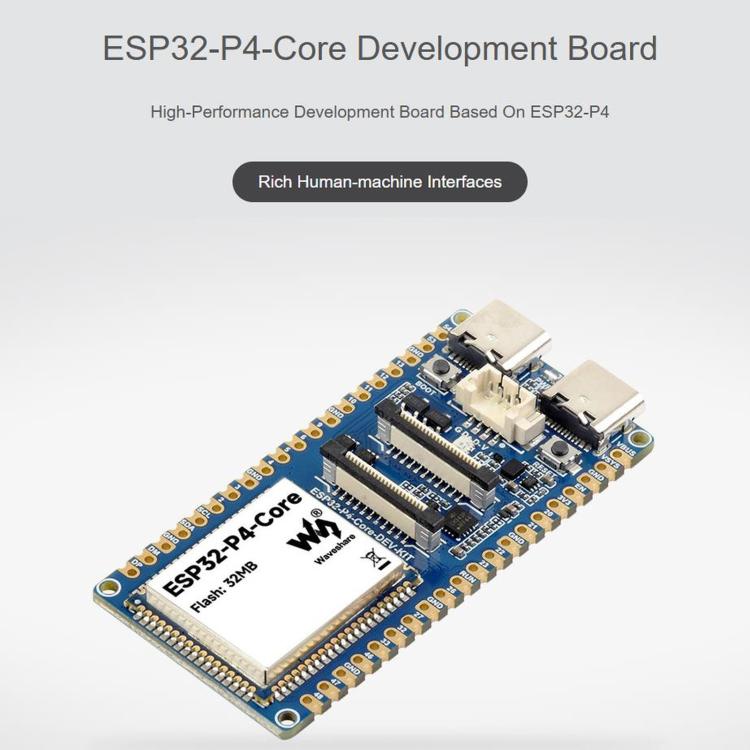

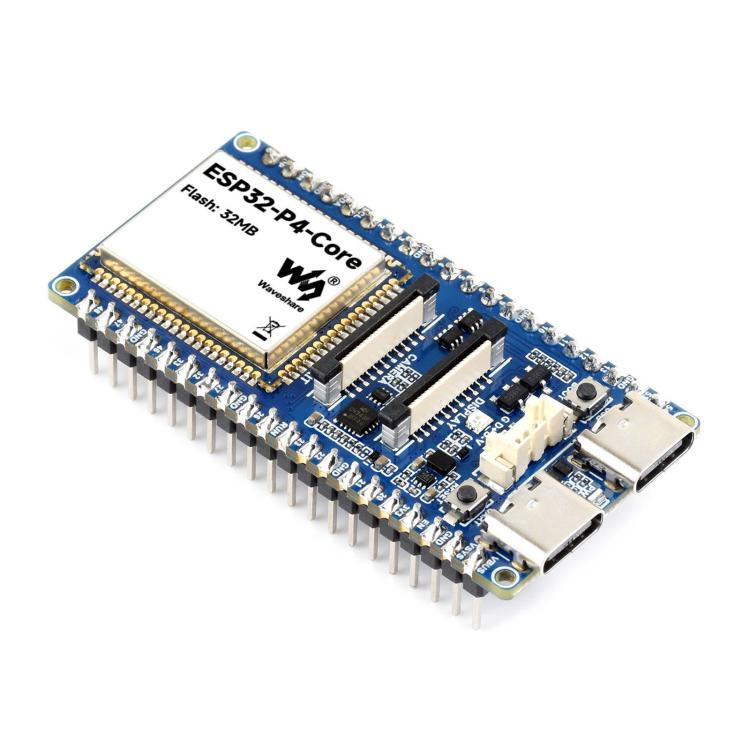

1. High-performance MCU featuring RISC-V 32-bit dual-core and single-core processors
2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
3. Powerful image and audio processing capabilities; image and audio processing interfaces include a JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H.264 video encoder

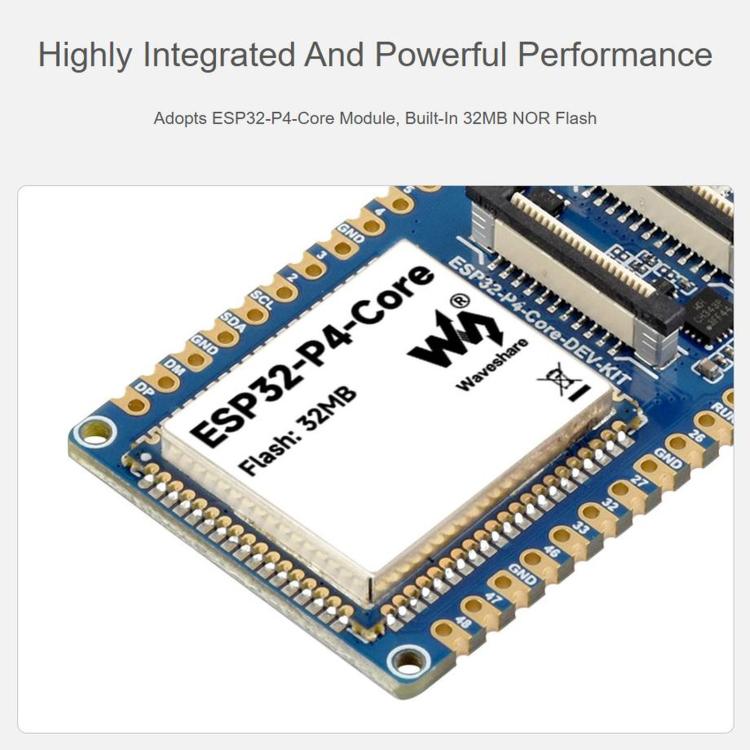

4. 32MB PSRAM stacked within the chip package; 32MB NOR Flash integrated into the module

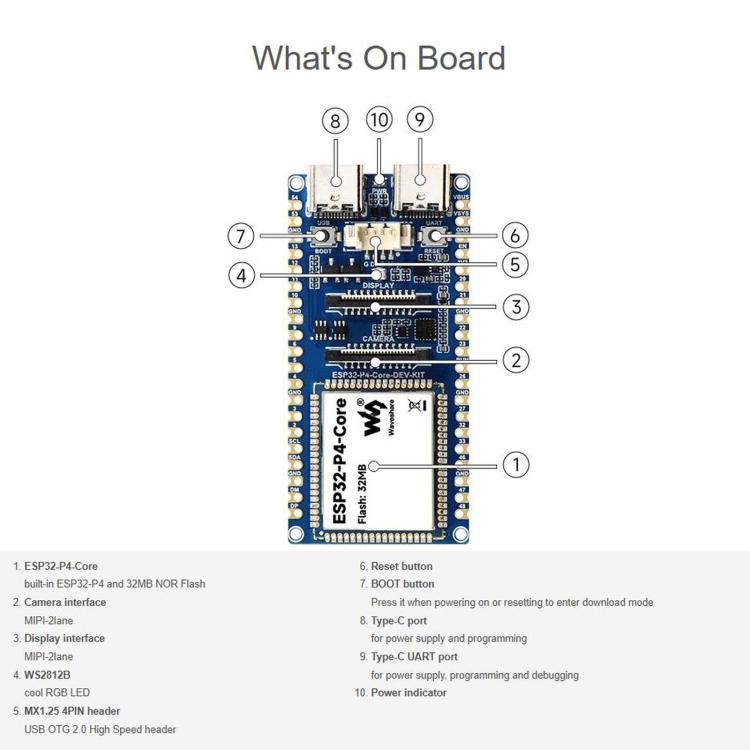

5. On-board interfaces for common peripherals such as MIPI-CSI, MIPI-DSI, and USB 2.0 OTG

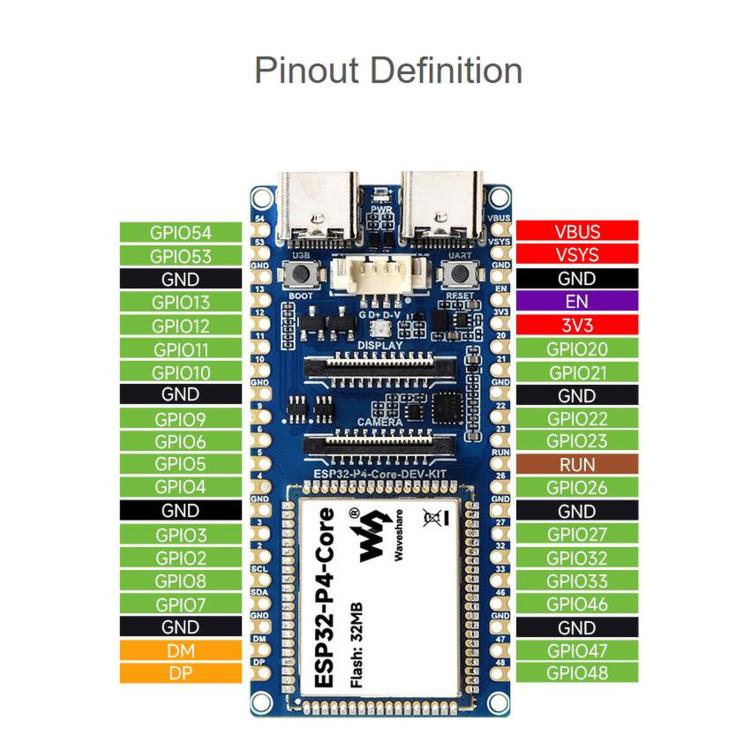

6. 2×20 pin headers on the board; GPIO pads on the bottom
7. Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection, enabling access permission management (APM) and privilege separation

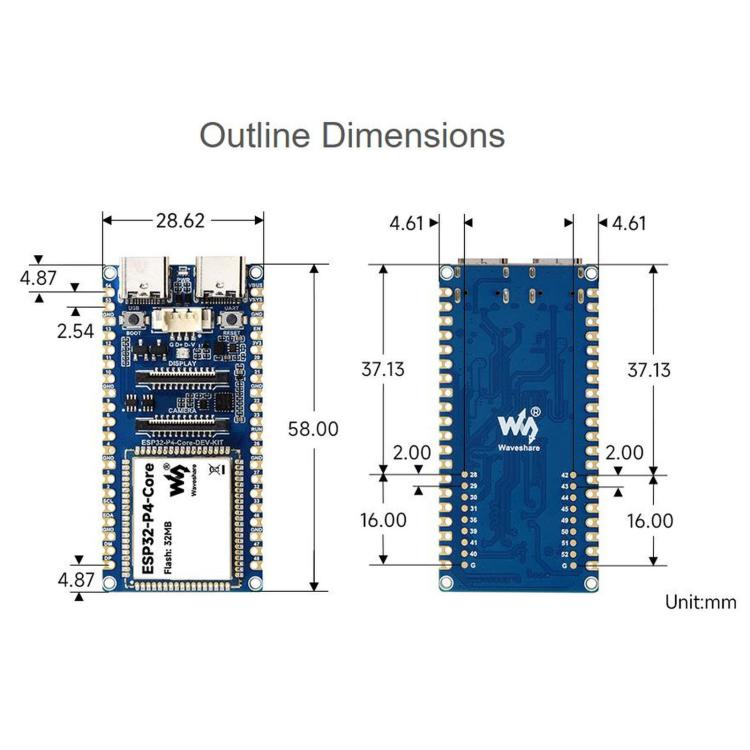

8. Dimensions: approximately 5.8 x 2.9 cm
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.07lb |
| One Package Size |
9cm * 6cm * 3cm / 3.54inch * 2.36inch * 1.18inch |
| Carton Weight |
6.50kgs / 14.33lb |
| Carton Size |
47cm * 26cm * 15cm / 18.5inch * 10.24inch * 5.91inch |
| Loading Container |
20GP: 1454 cartons * 200 pcs = 290800 pcs
40HQ: 3377 cartons * 200 pcs = 675400 pcs |
|
