1. Power supply: 9-24V
2. Communication interface: RS485 port x 1, Ethernet port x 1
3. Baud rate: 300-115200 bps
4. Data bits: 5-9 bits
5. Configuration: host, web browser, device management function library
6. Communication method: TCP/IP direct communication, VCOM
7. Working temperature: -40 degrees to 85 degrees

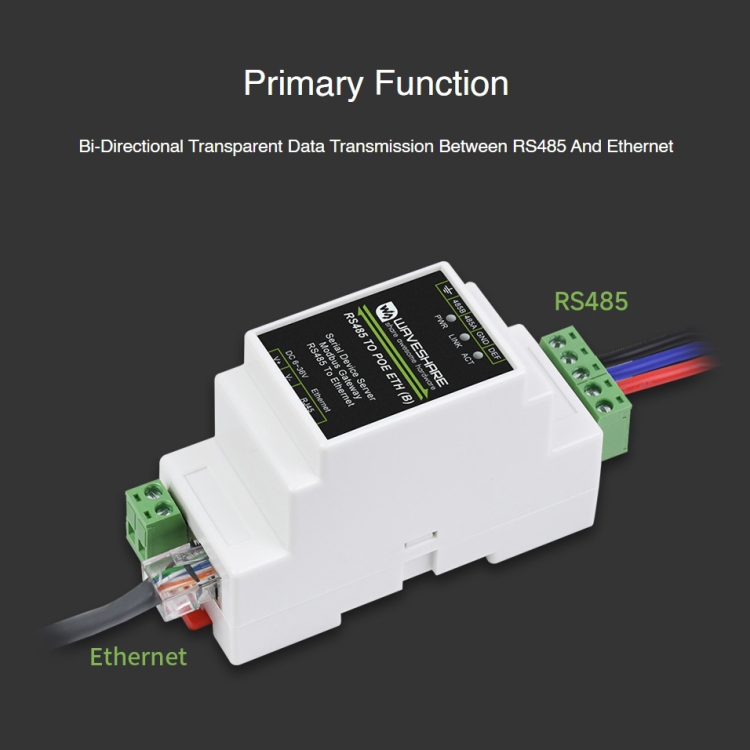

8. Main function: Bidirectional transparent data transmission between RS485 and Ethernet
9. It is easy to combine multi-rail installed serial servers together, more freedom.
10. It is suitable for Modbus grid upgrade and can be used in conjunction with 3D configuration software.

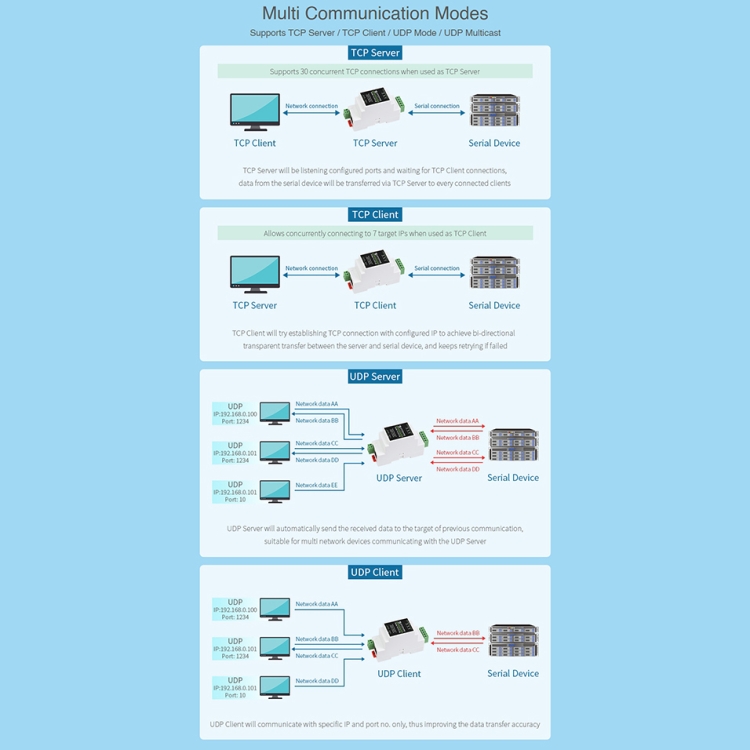

11. Support TCP server / TCP client / UDP mode / UDP multicast.

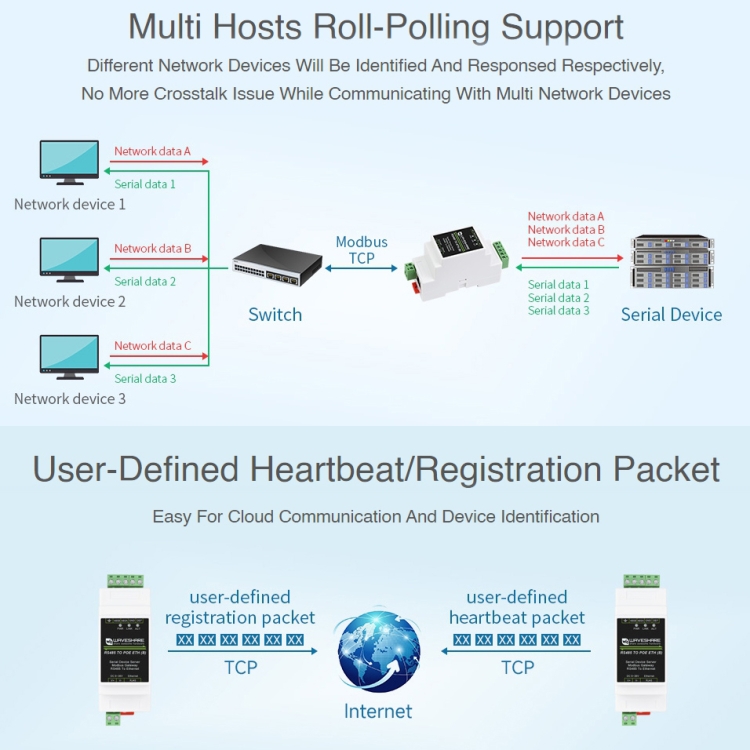

12. Multi-host rolling polling support, easy for cloud communication and device identification.
Specification:
| Package Weight |
| One Package Weight |
0.14kgs / 0.30lb |
| One Package Size |
12cm * 8cm * 6cm / 4.72inch * 3.15inch * 2.36inch |
| Carton Weight |
16.00kgs / 35.27lb |
| Carton Size |
50cm * 42cm * 32cm / 19.69inch * 16.54inch * 12.6inch |
| Loading Container |
20GP: 396 cartons * 100 pcs = 39600 pcs
40HQ: 921 cartons * 100 pcs = 92100 pcs |
|
