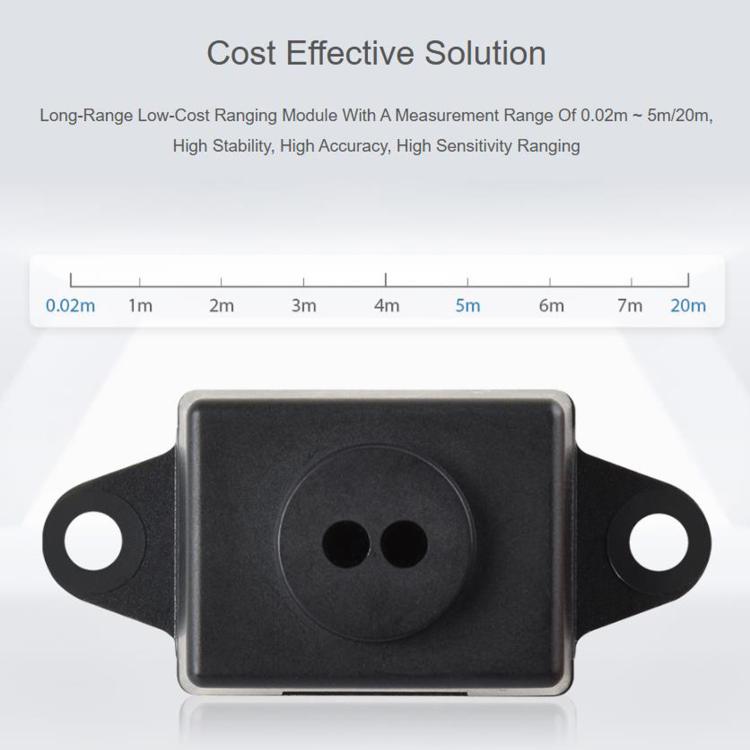

1. Typical measurement range: 0.02m – 5m
2. Error: ±(1% – 3%)
3. Field of View (FOV): 3° ± 0.5°
4. Refresh rate: 30Hz (This parameter supports batch customization, with a maximum of 90Hz)
5. Anti-environmental light capability: 100K Lux
6. Operating temperature: -20°C to +70°C
7. Operating humidity: 35% to 80% RH
8. Laser safety level: LASER CLASS 1
9. Wavelength: 940nm

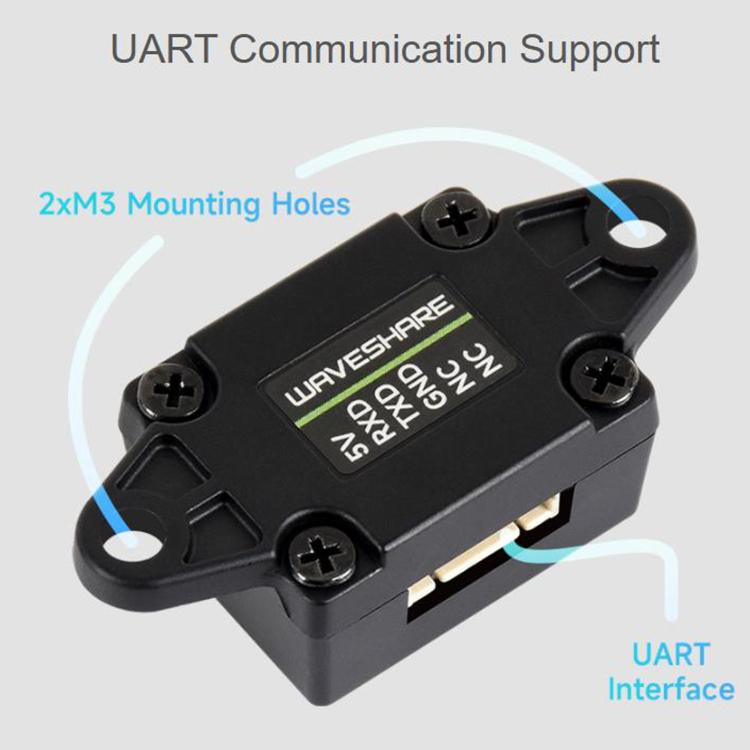

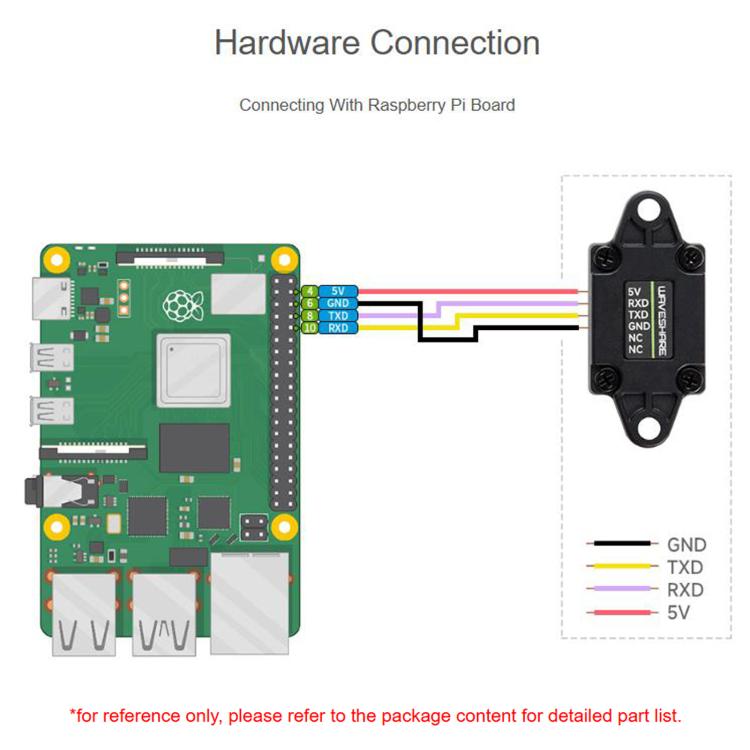

10. Communication interface: UART
11. Communication baud rate: 115.2Kbps
12. Supply voltage: 4V – 5.6V
13. Communication level: 3.3V
14. Product power consumption: 100mW – 140mW
15. Storage temperature: -40°C to +80°C
16. Shell material: PC

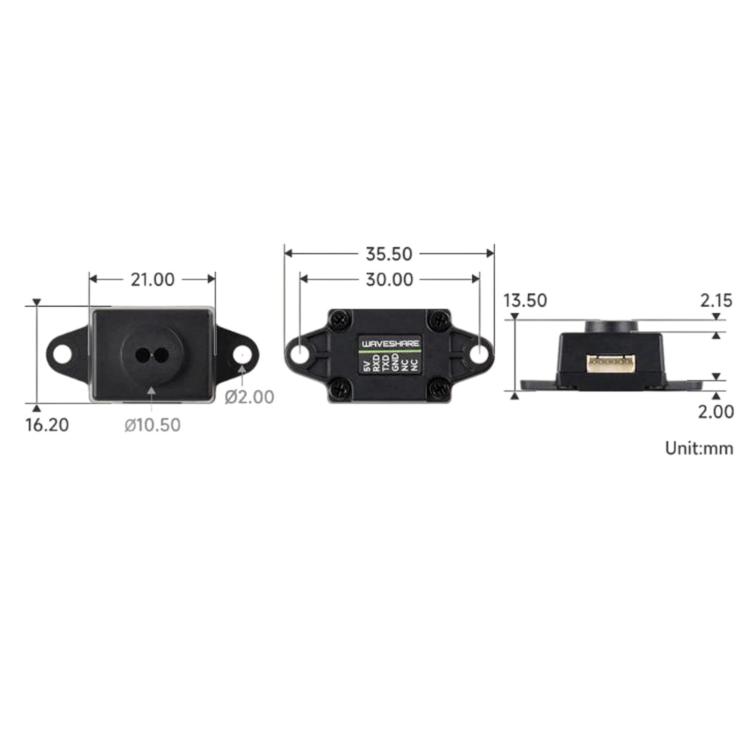

17. Size: about 3.55 x 1.62 x 1.35 cm
18. Weight: about 3.6g
19. Packaging list: TOF MINIF Range Sensor (B) x 1, MX1.25 4PIN connector cable 100mm x 1
Specification:
| Package Weight |
| One Package Weight |
0.07kgs / 0.16lb |
| One Package Size |
7cm * 6cm * 4cm / 2.76inch * 2.36inch * 1.57inch |
| Carton Weight |
22.00kgs / 48.50lb |
| Carton Size |
50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch |
| Loading Container |
20GP: 467 cartons * 288 pcs = 134496 pcs
40HQ: 1086 cartons * 288 pcs = 312768 pcs |
|
