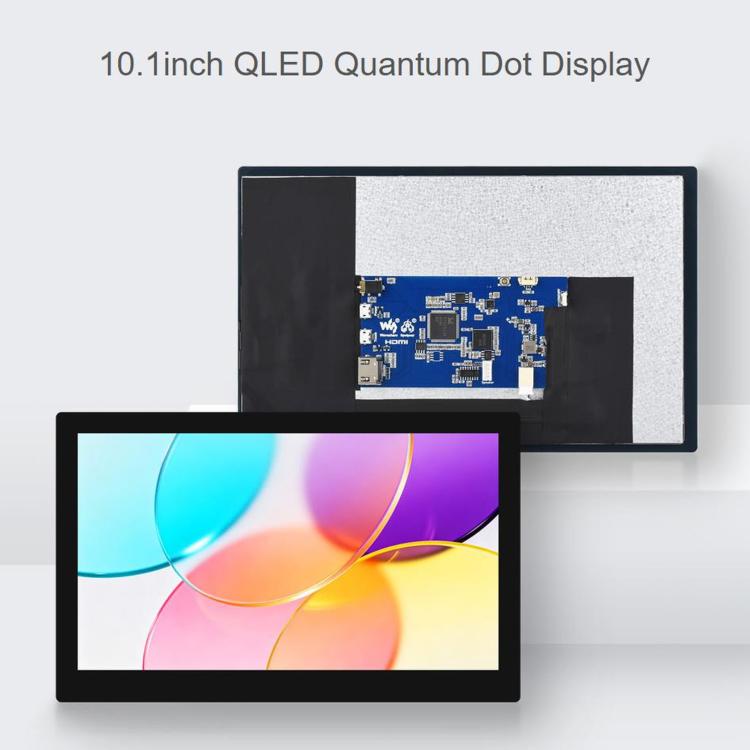

1. Screen Size: 10.1 inch
2. Resolution: 1280 x 720
3. Display Interface: HDMI
4. Display Panel: IPS
5. Viewing Angle: 170 degrees
6. Backlight: QLED Quantum Dot
7. Brightness: 350 cd/square meters
8. Touch Type: Capacitive Touch
9. Touch Points: 10-point touch
10. Touch Interface: Micro USB
11. Touch Panel: G+G Tempered Glass
12. OSD Menu: Adjust brightness/contrast
13. Brightness Adjustment: Supports DDC/CI software dimming
14. Audio Output: 3.5mm headphone jack, 4-pin connector
Features:

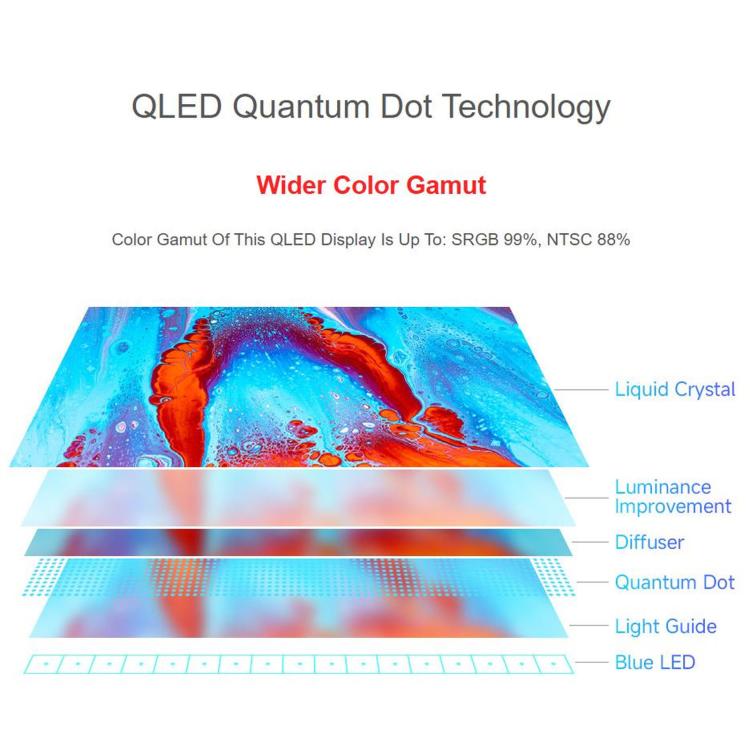

1. IPS panel with QLED quantum dot technology, offering color gamut coverage of up to 99% sRGB / 88% NTSC and a wide viewing angle of 170 degrees, providing clear and accurate color reproduction

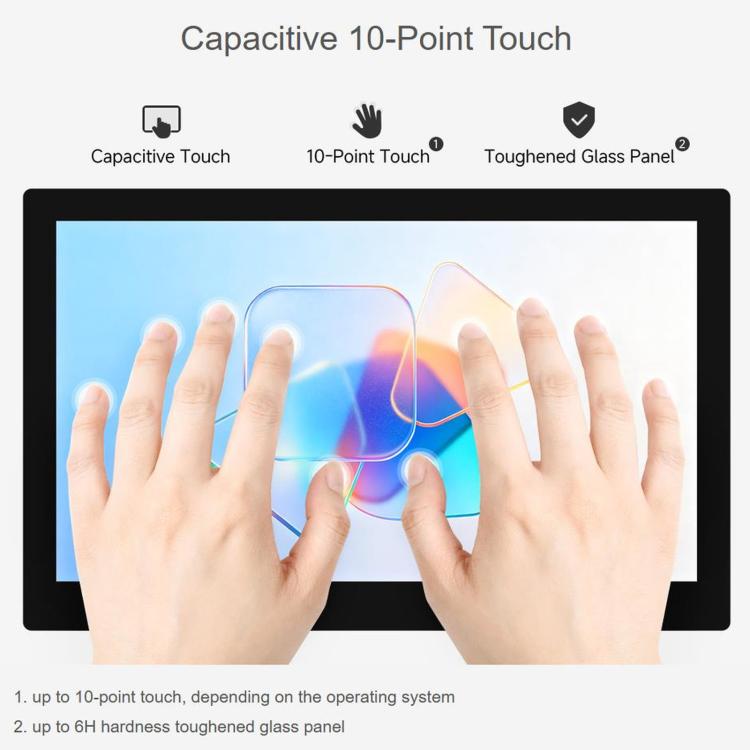

2. High-hardness (up to 6H) tempered glass panel (G+G structure) supports up to 10-point capacitive touch, offering smooth swiping and excellent wear and scratch resistance

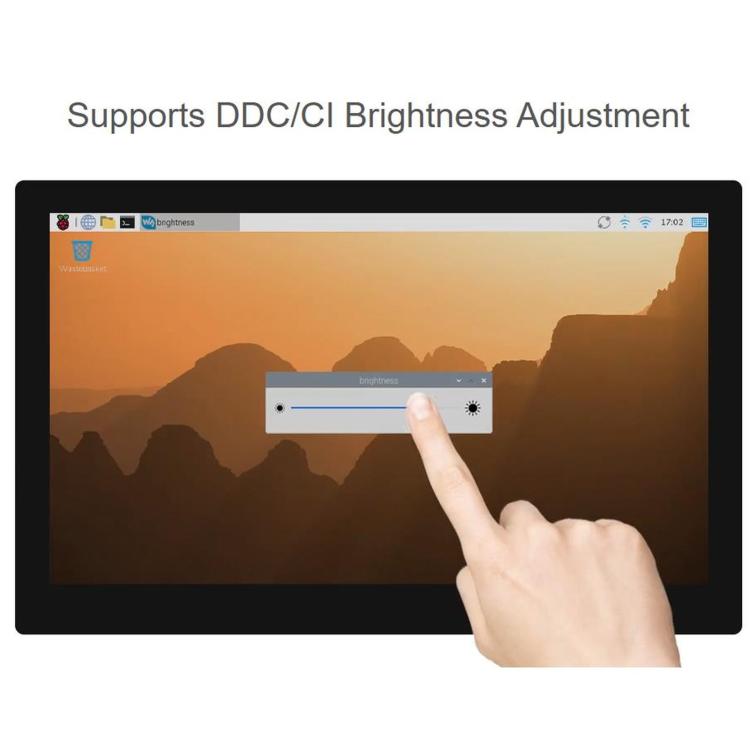

3. Supports adjusting display brightness via the DDC/CI protocol through system software, allowing for flexible adjustments based on ambient lighting

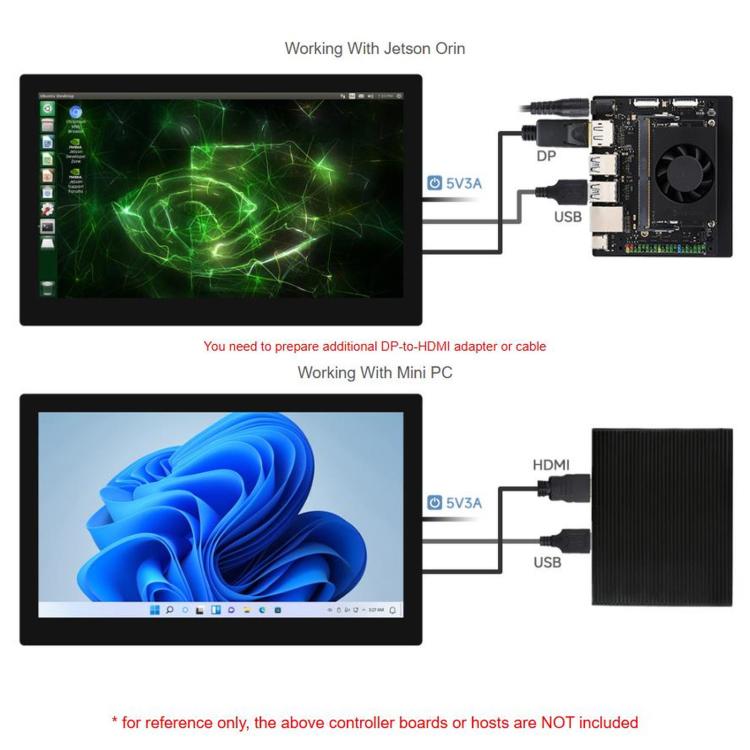

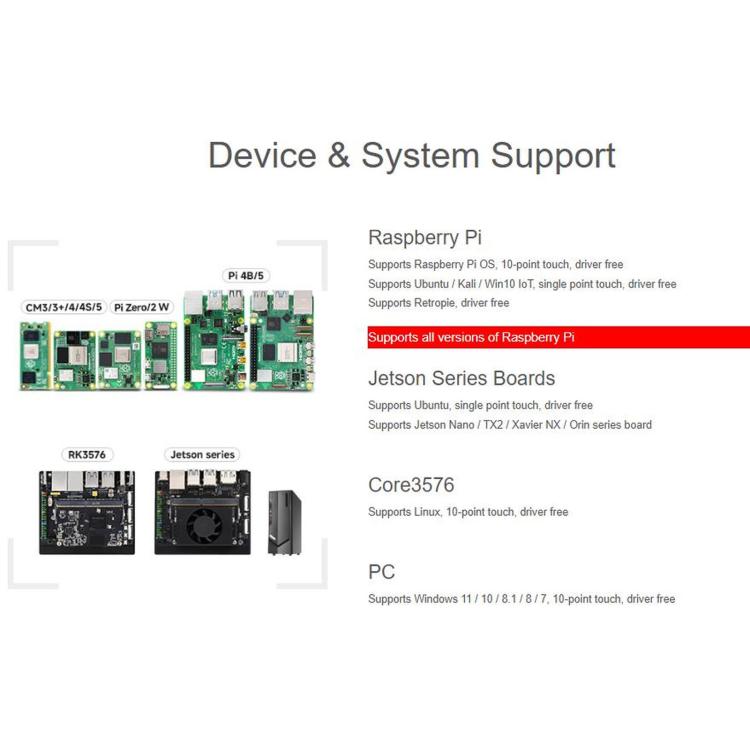

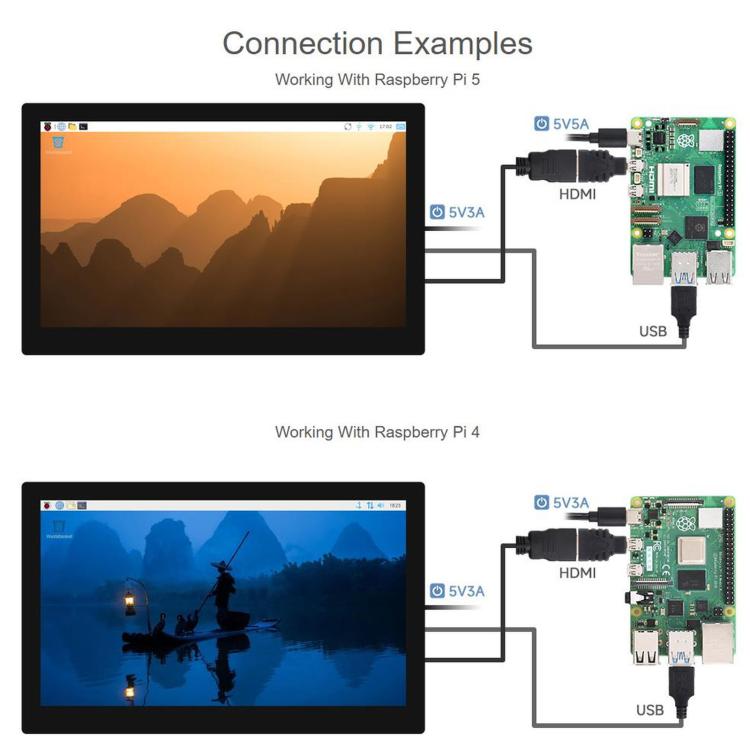

4. Supports a wide range of systems, including the full for Raspberry Pi series, for Jetson series development boards, RK3576/Core3576, and Windows 7/8/8.1/10/11. It is driver-free and plug-and-play (some systems support single-point or multi-point touch)

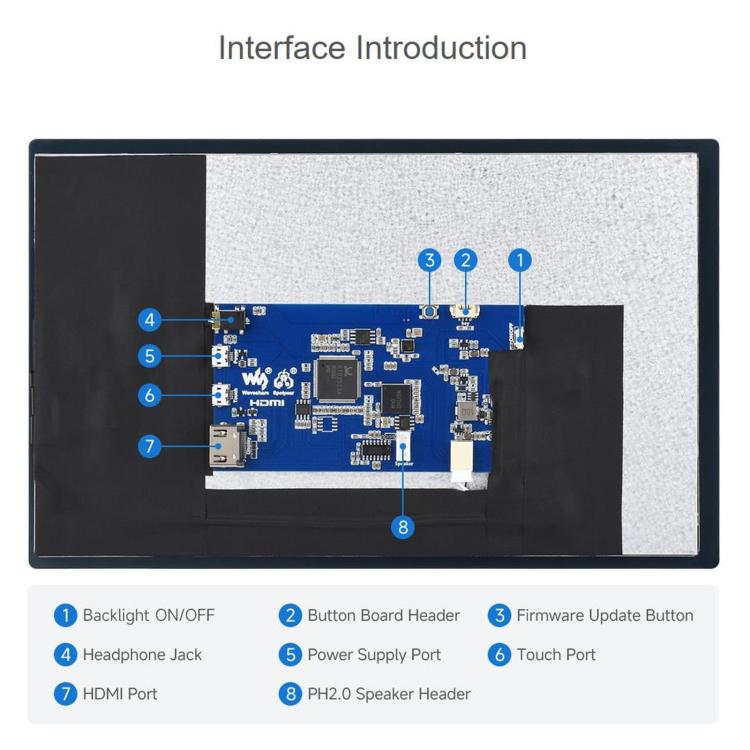

5. Features a resolution of 1280 x 720. The mainboard integrates an HDMI display port and a USB touch/power port, offering a compact design suitable for DIY projects and embedded device integration

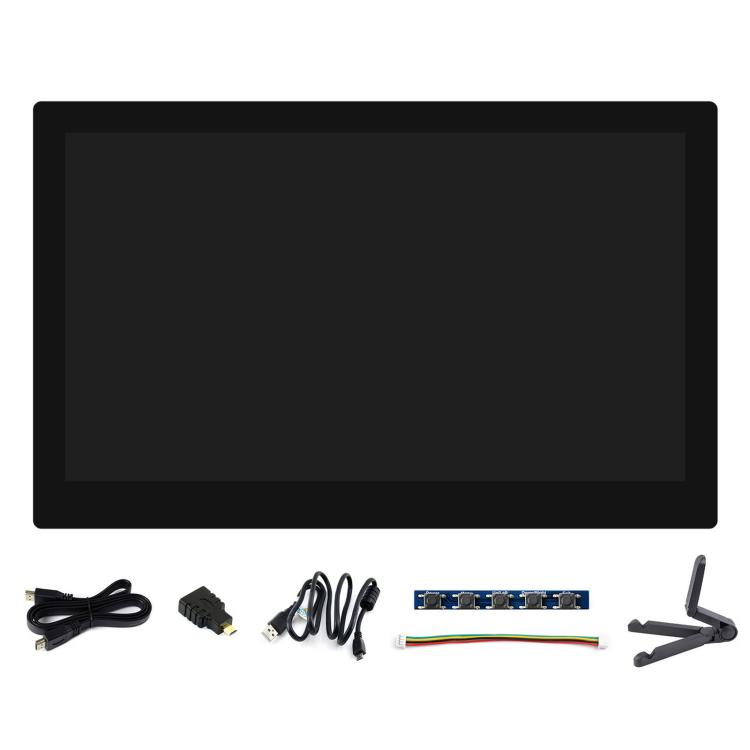

Package Contents:
1. Display x 1
2. HDMI ribbon cable x 1
3. Micro-B cable x 1
4. Keypad x 1
5. Triangular stand x 1
6. Adapter x 1
7. Power adapter x 1
8. 4-pin dual-ended cable x 1
Specification:
| Package Weight |
| One Package Weight |
0.60kgs / 1.33lb |
| One Package Size |
28cm * 20cm * 5cm / 11.02inch * 7.87inch * 1.97inch |
| Carton Weight |
13.00kgs / 28.66lb |
| Carton Size |
48cm * 30cm * 30cm / 18.9inch * 11.81inch * 11.81inch |
| Loading Container |
20GP: 617 cartons * 20 pcs = 12340 pcs
40HQ: 1432 cartons * 20 pcs = 28640 pcs |
|
