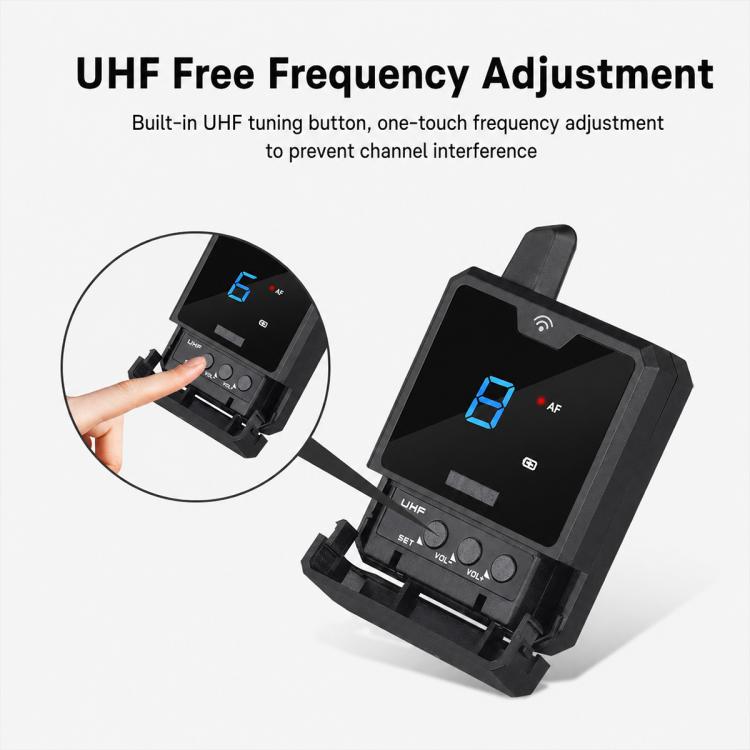

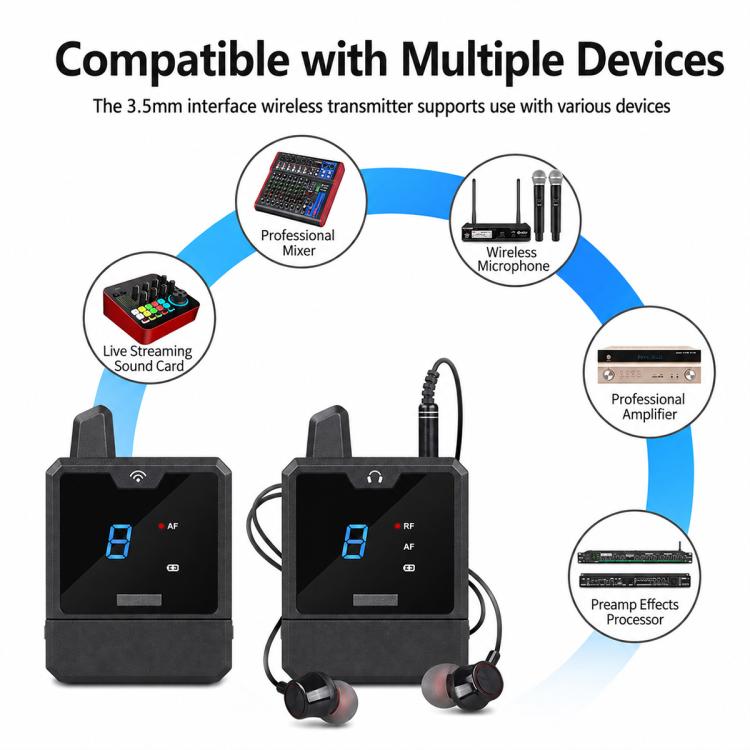

1. UHF Wireless Tuning: Uses UHF wireless transmission to provide convenient audio reception and monitoring for live audio monitoring and other applications.
2. Real Time Feedback: The real time feedback function helps users monitor the current audio status promptly for a more convenient monitoring experience.

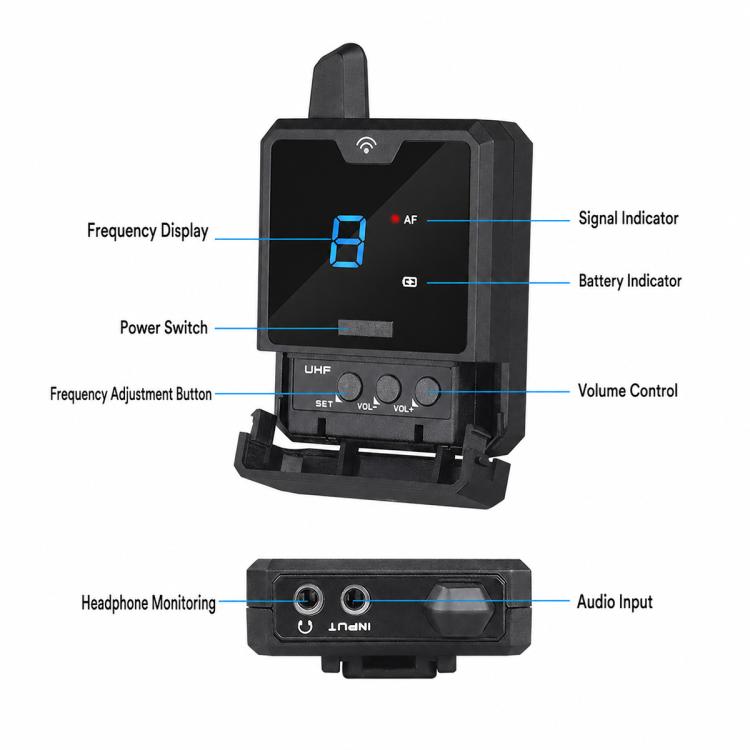

3. Adjustable Volume: Built in volume control allows users to adjust the monitoring level according to different environments and personal preferences.

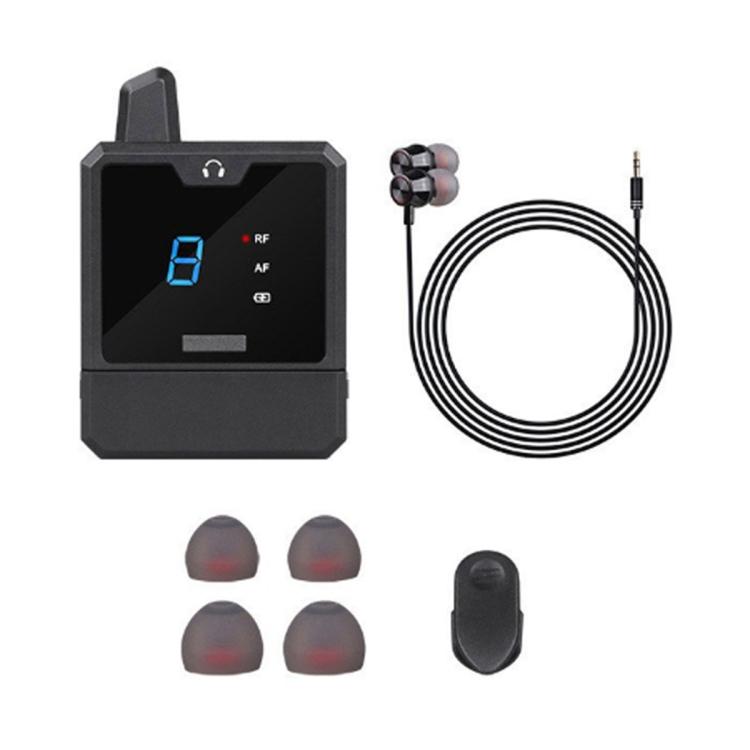

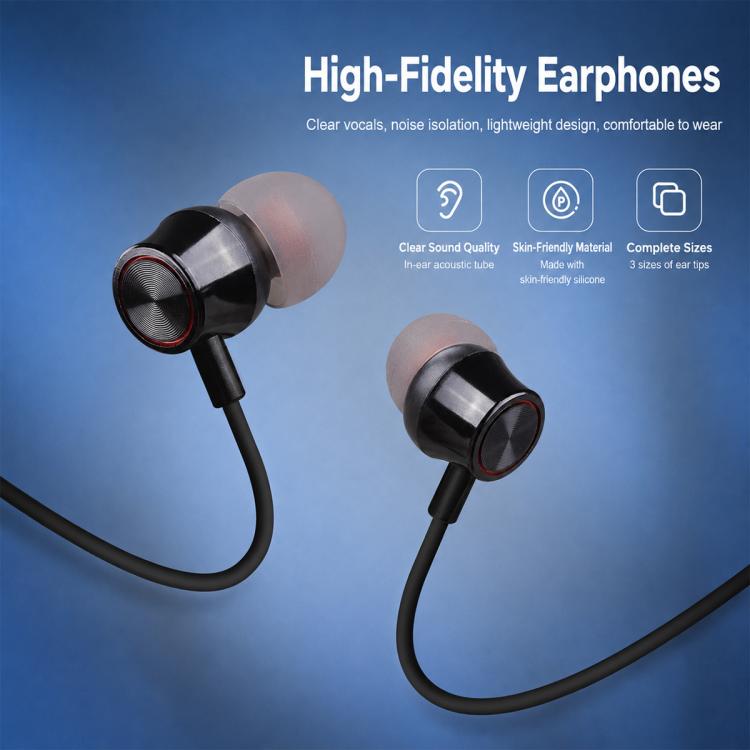

4. Headphone Monitoring: Supports headphone monitoring for focused audio listening and helps reduce interference from surrounding sounds.

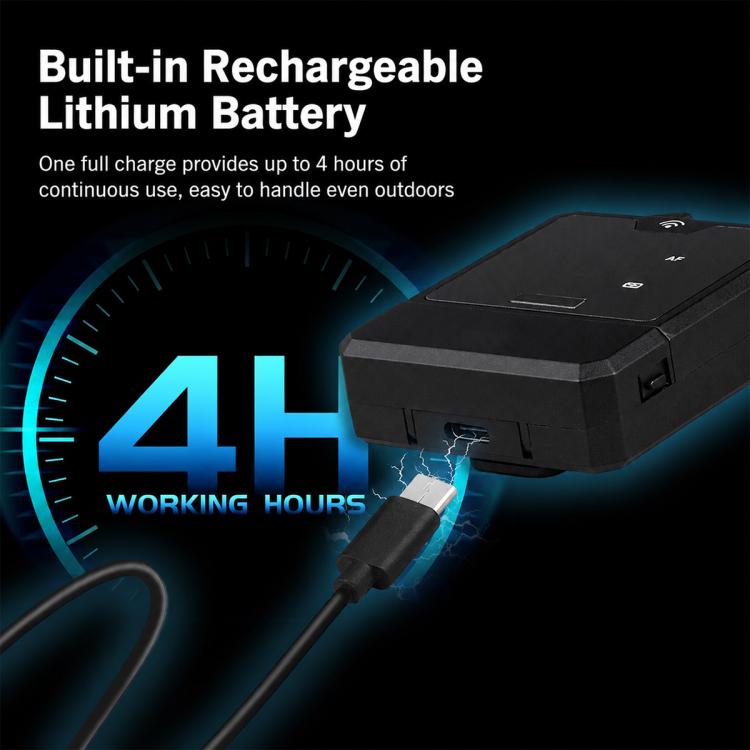

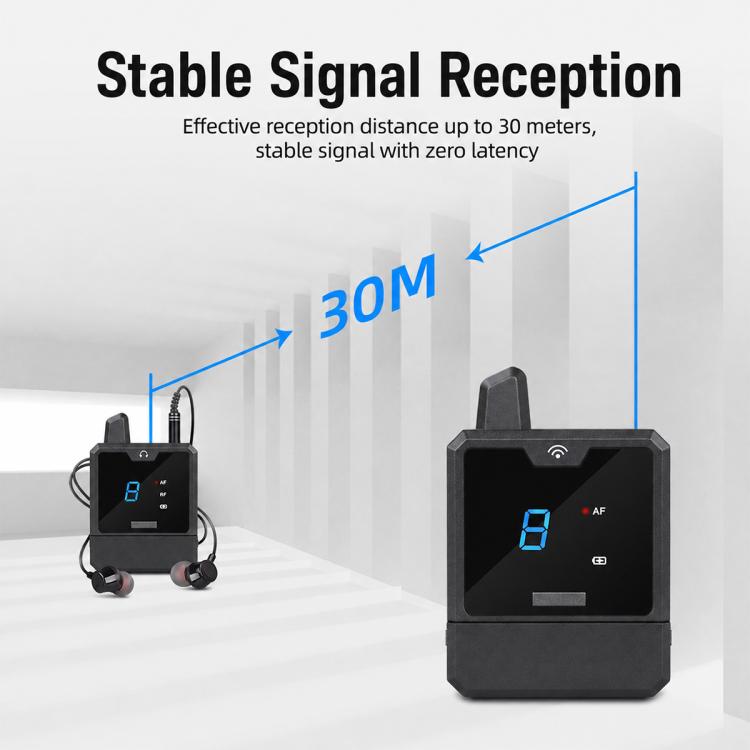

5. Rechargeable And Extended Reception: The built in rechargeable battery reduces the need for frequent battery replacement, while the reception range of up to 30 m provides flexible wireless monitoring for different scenarios.
Transmitter Specifications:
1. Frequency Range: 501–599.5 MHz
2. Number of Channels: 16
3. Oscillation Mode: DSP chip frequency locking
4. Frequency Stability: ±10 ppm
5. RF Power: 10 dBm
6. Audio Frequency Response: 40–18,000 Hz
7. Distortion: Less than or equal to 0.5%
8. Battery Capacity: 600 mAh
Receiver Specifications:
1. Frequency Range: 501–599.5 MHz
2. Number of Channels: 30 per channel (Channels A and B)
3. Oscillation Mode: DSP chip frequency locking
4. Frequency Stability: ±10 ppm
5. Sensitivity: -95 to -71 dBm
6. Audio Frequency Response: 40–18,000 Hz
7. Distortion: Less than or equal to 0.5%
8. Signal-to-Noise Ratio: More than or equal to 90 dB
Specification:
| Package Weight |
| One Package Weight |
0.07kgs / 0.16lb |
| One Package Size |
10cm * 10cm * 5cm / 3.94inch * 3.94inch * 1.97inch |
| Carton Weight |
6.04kgs / 13.32lb |
| Carton Size |
32cm * 32cm * 42cm / 12.6inch * 12.6inch * 16.54inch |
| Loading Container |
20GP: 620 cartons * 72 pcs = 44640 pcs
40HQ: 1439 cartons * 72 pcs = 103608 pcs |
|
