Description

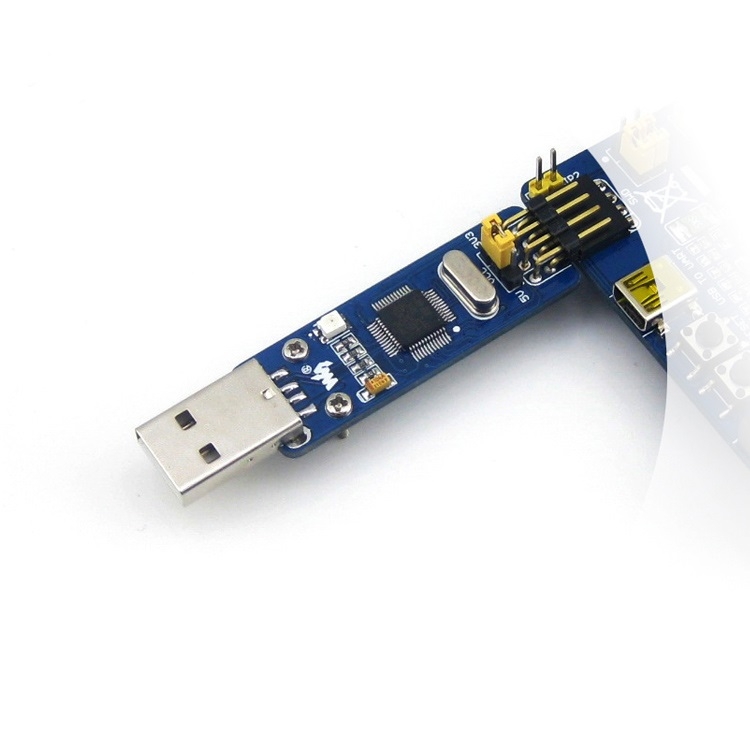

Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.
Features
1. Onboard 500mA self-recovery fuse to avoid harming by short circuit
2. Dual voltage output (3.3V/5V), easy for debugging/programming
3. Standard USB interface for direct connection to PC
4. Debugging/Programing performance
– Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc.
– Programming : supports FLASH ROM, EEPROM, AFR, etc.
– USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming
5. Upgradable firmware
– The firmware is upgradable to support more devices in the future
– Automatically upgraded
6. Supported software
– ST-LINK Utility v2.0 (or higher ver.)
– STVD Version 4.2.1 (or higher ver.)
– STVP Version 3.2.3 (or higher ver.)
– IAR EWARM Revision v6.20 (or higher ver.)
– IAR EWSTM8 Revision v1.30 (or higher ver.)
– KEIL RVMDK Revision v4.21 (or higher ver.)
– ATOLLIC
– TASKING
7. Supported devices
– All the STM8 devices with SWIM interface
– All the STM32 devices with SWD interface
Package Contents
1. ST-LINK/V2 (mini) × 1
2. 4-pin custom connector cable × 1
3. USB type A plug to receptacle cable × 1
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.04lb |
| One Package Size |
8cm * 4cm * 1cm / 3.15inch * 1.57inch * 0.39inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
56cm * 40cm * 40cm / 22.05inch * 15.75inch * 15.75inch |
| Loading Container |
20GP: 297 cartons * 2800 pcs = 831600 pcs
40HQ: 690 cartons * 2800 pcs = 1932000 pcs |
|
