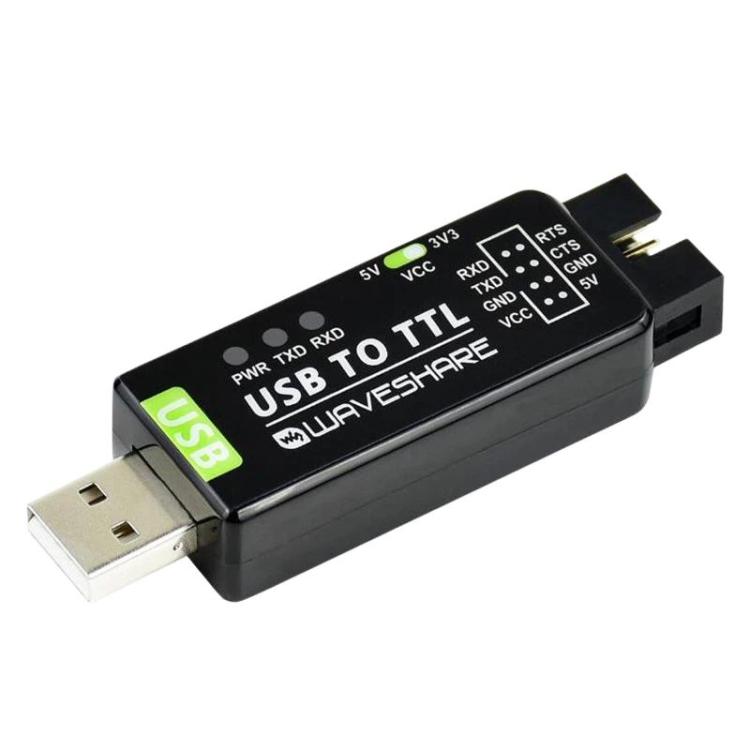

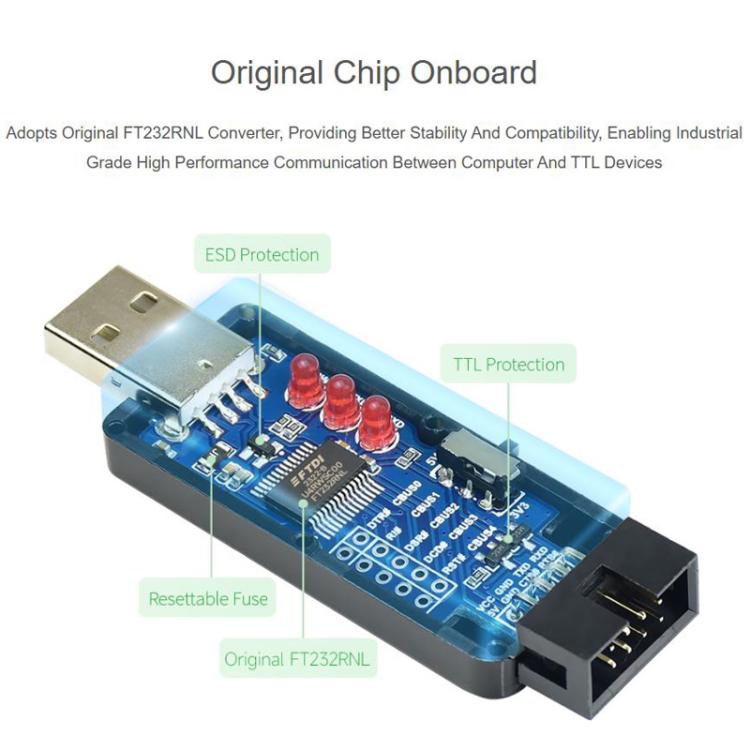

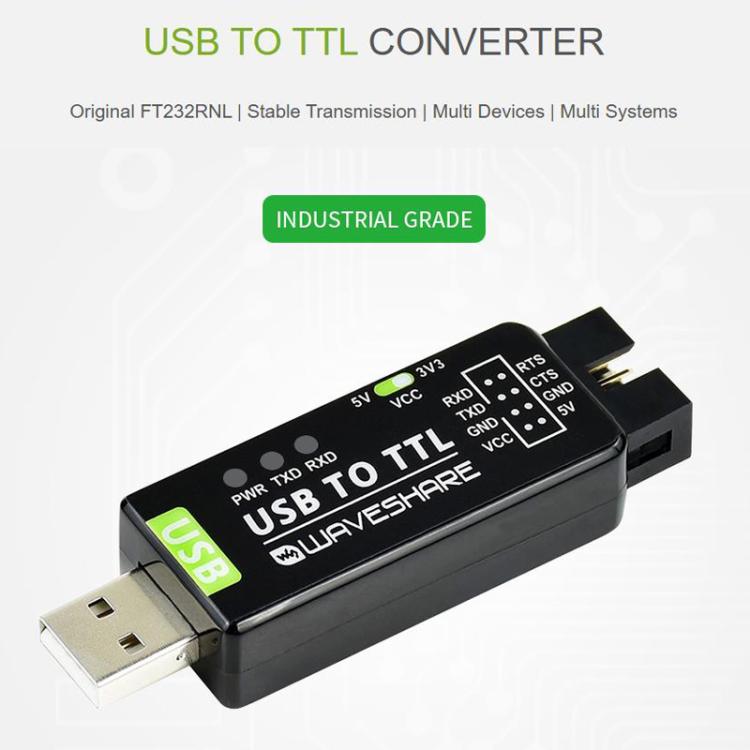

1. Utilizing the original FT232RNL chip, it offers better stability and compatibility, enabling seamless industrial-grade high-performance communication between computers and TTL devices

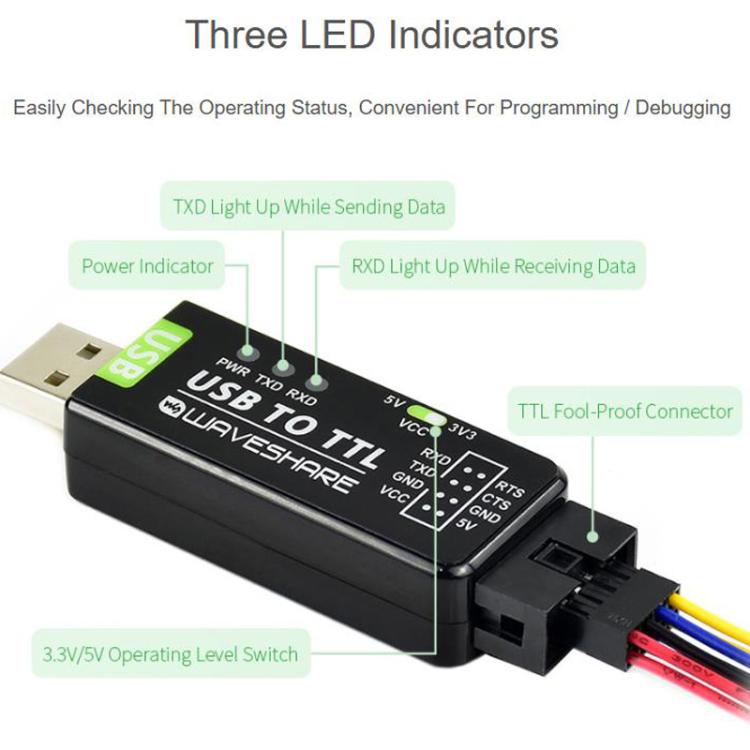

2. Three data indicator lights, allowing easy observation of the working status, facilitating programming and debugging for you
3. Host interface: USB
4. Communication rate: 300bps – 3Mbps
5. Device interface: UART
6. USB interface: Interface type: USB-A type interface; Interface protection: self-recovery fuse, ESD static protection

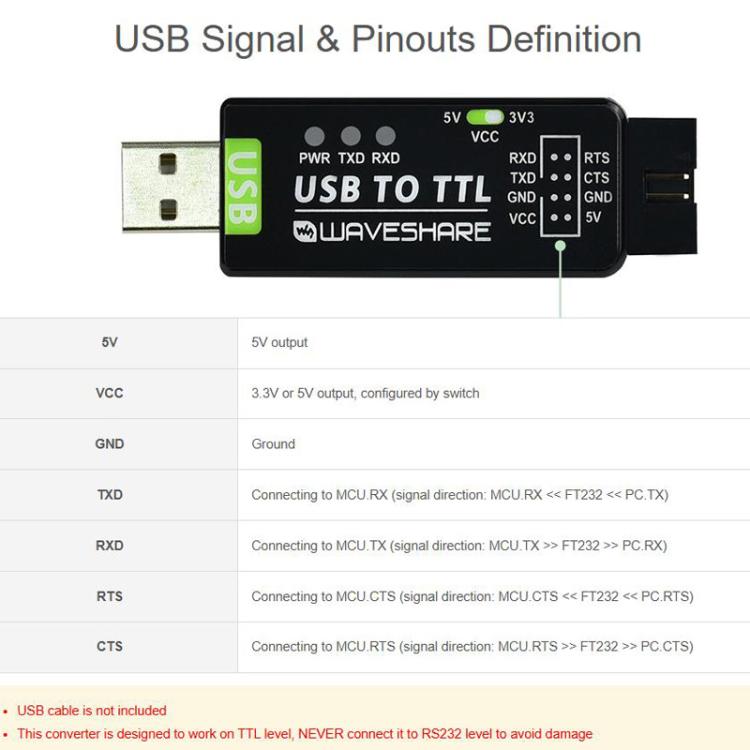

7. UART interface: Interface form: terminal block; Interface form: 8PIN anti-blocking interface; Interface protection: IO protection diode circuit
8. Indicator lights: PWR: power indicator light, turns on when connected to USB and detects voltage; TXD: transmit indicator light, turns on when data is sent from the USB port; RXD: receive indicator light, turns on when data is sent back from the device interface
9. Note: this product does not come with a USB cable. This module is a USB-to-TTL level converter. Do not directly connect to RS232 level to avoid damaging the module
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.19lb |
| One Package Size |
10cm * 5cm * 3cm / 3.94inch * 1.97inch * 1.18inch |
| Carton Weight |
26.00kgs / 57.32lb |
| Carton Size |
42cm * 37cm * 35cm / 16.54inch * 14.57inch * 13.78inch |
| Loading Container |
20GP: 490 cartons * 305 pcs = 149450 pcs
40HQ: 1138 cartons * 305 pcs = 347090 pcs |
|
