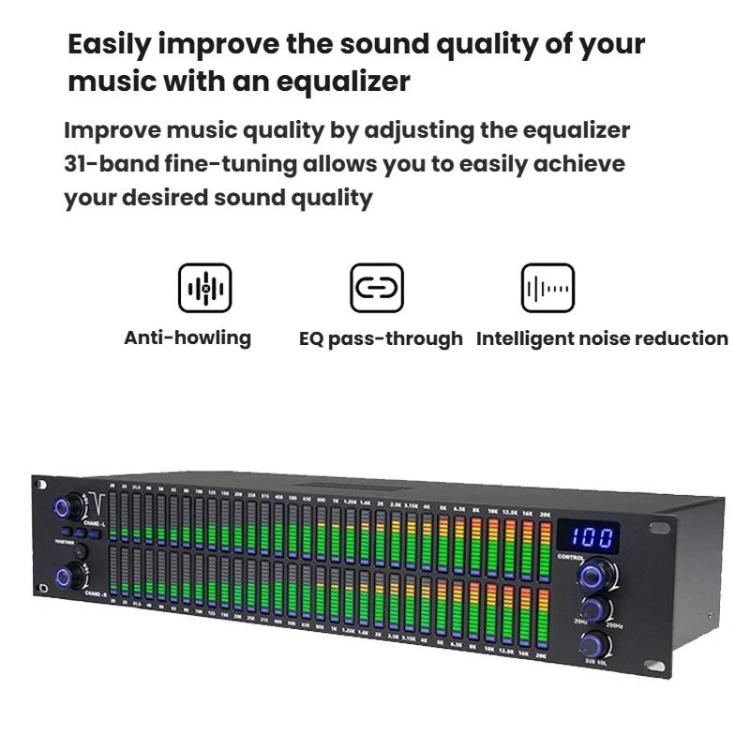

1. Enhance music quality by modifying audio through the equalizer; 31-band fine-tuning effortlessly achieves ideal sound performance

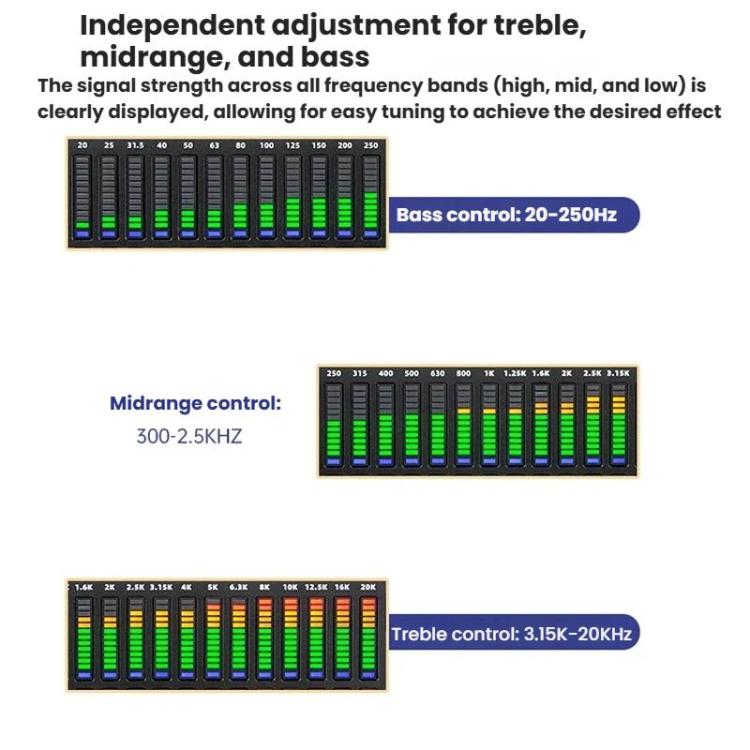

2. Independent adjustment of treble, midrange, and bass

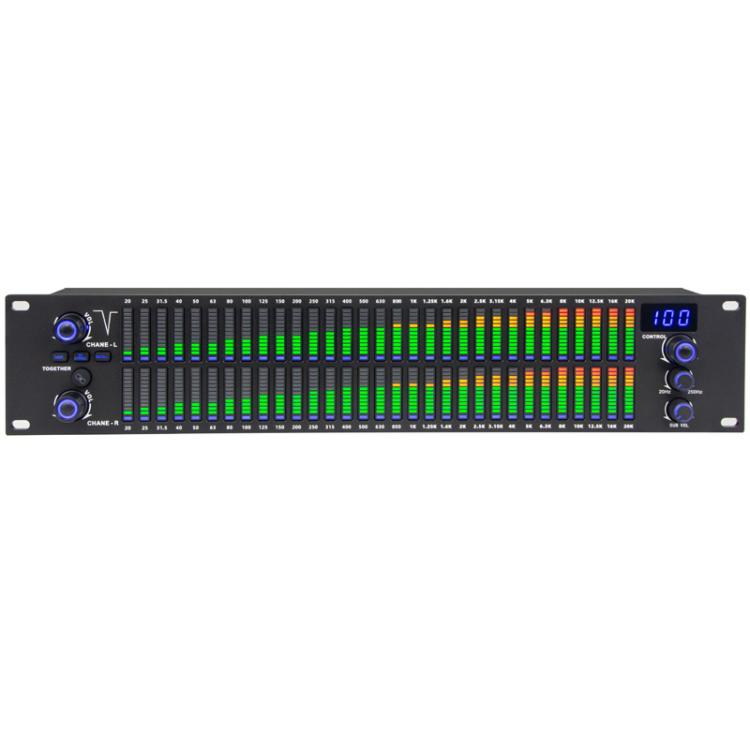

3. Standard 2U rack-mountable
4. Dual-channel synchronized control of dual 31-band EQ, integrating DSP digital and analog processing
5. LED spectrum indicators per EQ band provide clear visual feedback on frequency levels during operation
6. Real-time dual 31-band frequency point switching with 99% spectral accuracy

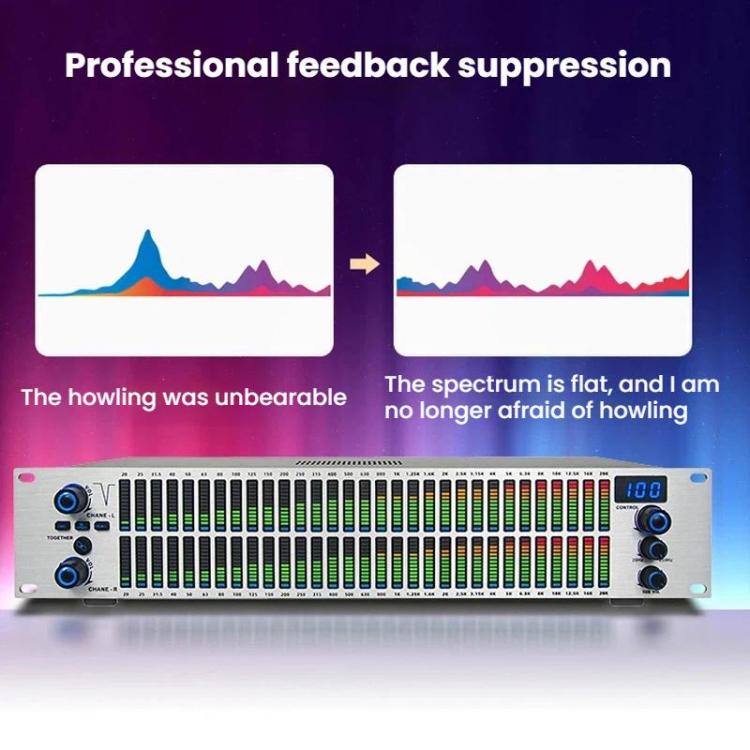

7. Advanced noise gate function eliminates system noise, with fixed threshold calibration range

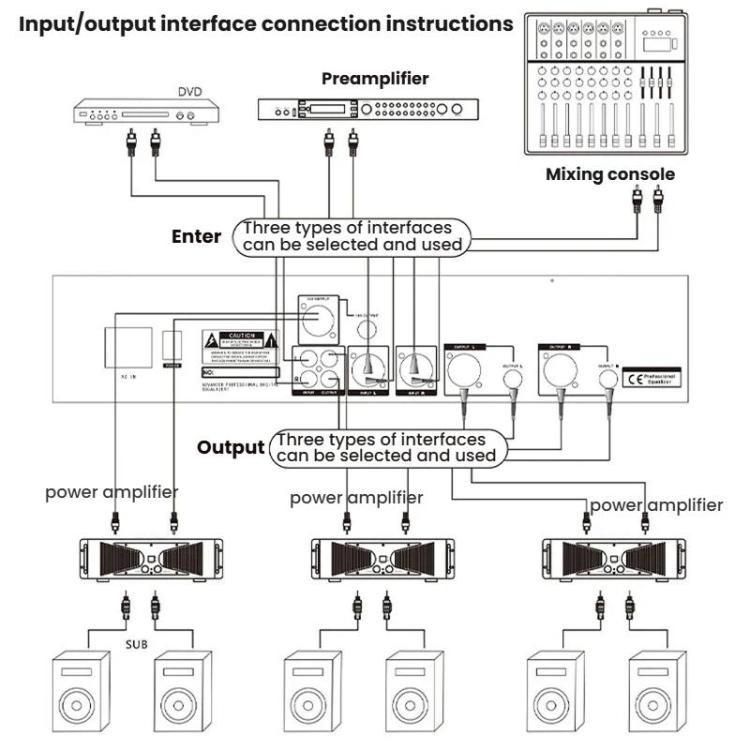

8. Input/output interfaces support multiple types: TRS 6.35mm/RCA phono/XLR balanced connectors
9. EQ bypass: Bypasses the graphic equalizer in the signal path

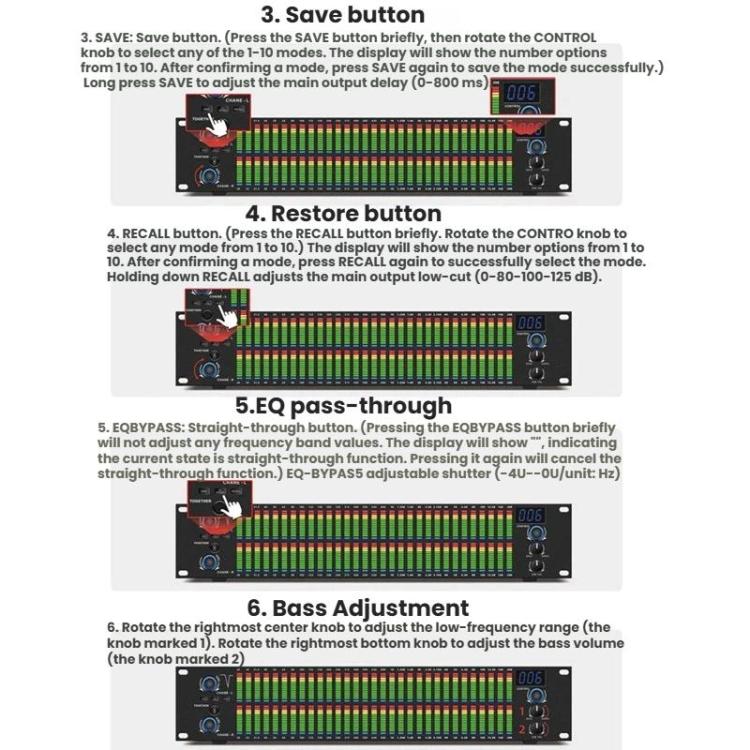

10. Save and recall function: Stores and recalls 10 preset modes
11. Microphone gain: -1dB or +11dB
12. Line input impedance: 15K ohms
13. Frequency response: 20Hz–20kHz
14. Signal-to-noise ratio: 82dB
Specification:
| Package Weight |
| One Package Weight |
3.00kgs / 6.62lb |
| One Package Size |
54cm * 30cm * 8cm / 21.26inch * 11.81inch * 3.15inch |
| Carton Weight |
16.20kgs / 35.71lb |
| Carton Size |
56cm * 42cm * 32cm / 22.05inch * 16.54inch * 12.6inch |
| Loading Container |
20GP: 354 cartons * 5 pcs = 1770 pcs
40HQ: 822 cartons * 5 pcs = 4110 pcs |
|
