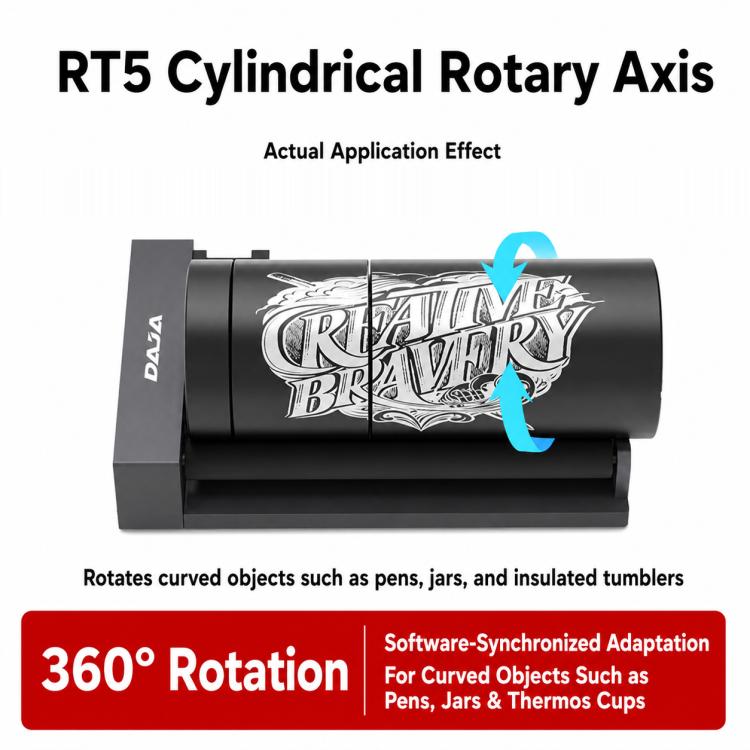

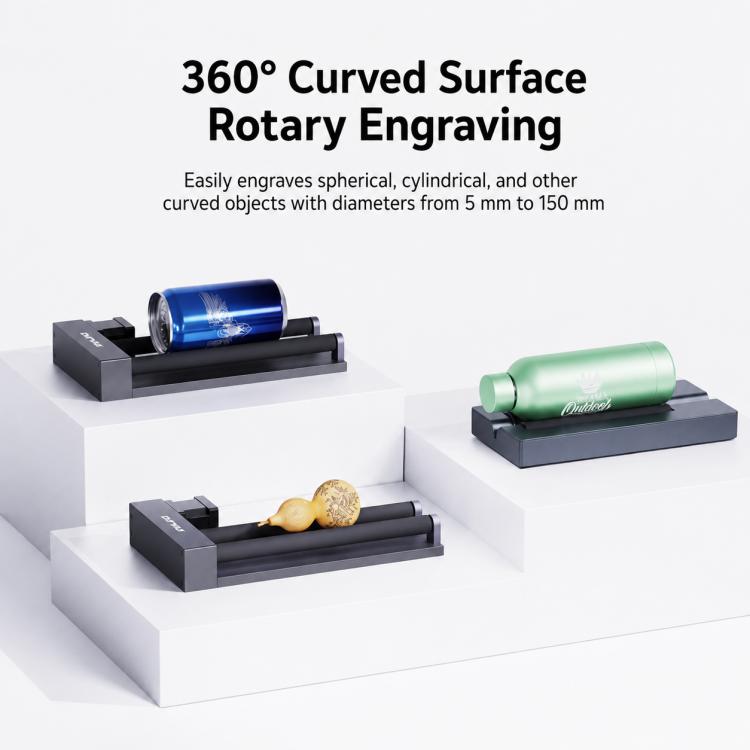

1. Supports Rotary Engraving: The RT5 rotary axis supports 360-degree synchronous rotation and is compatible with laser engraving software, enabling continuous marking on the curved surfaces of cylindrical workpieces such as thermos cups, water bottles, jars, gourds, and pen barrels.

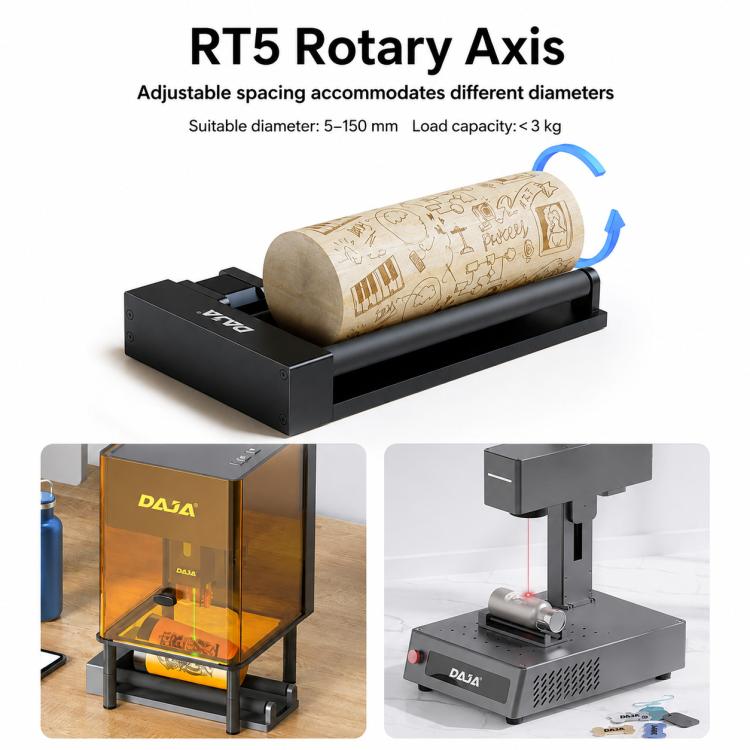

2. Wide Adjustable Gap: The roller gap is adjustable, adaptable to workpieces with diameters from 5–150mm, covering most customized cylindrical products.
3. Stable All-Metal Body: The entire machine adopts an all-metal structure, ensuring stable operation during long-term engraving, with a maximum load capacity of less than 3 kg.
4. Wide Equipment Compatibility: Compatible with DAJA series laser engraving equipment, supporting UV laser marking machines, fiber optic marking machines, and semiconductor laser engraving machines.
5. Breaks through the limitations of planar engraving, enabling engraving patterns on over 500 curved products, including thermos cups, wine glasses, wooden rolling pins, and metal cans, enriching customized services.

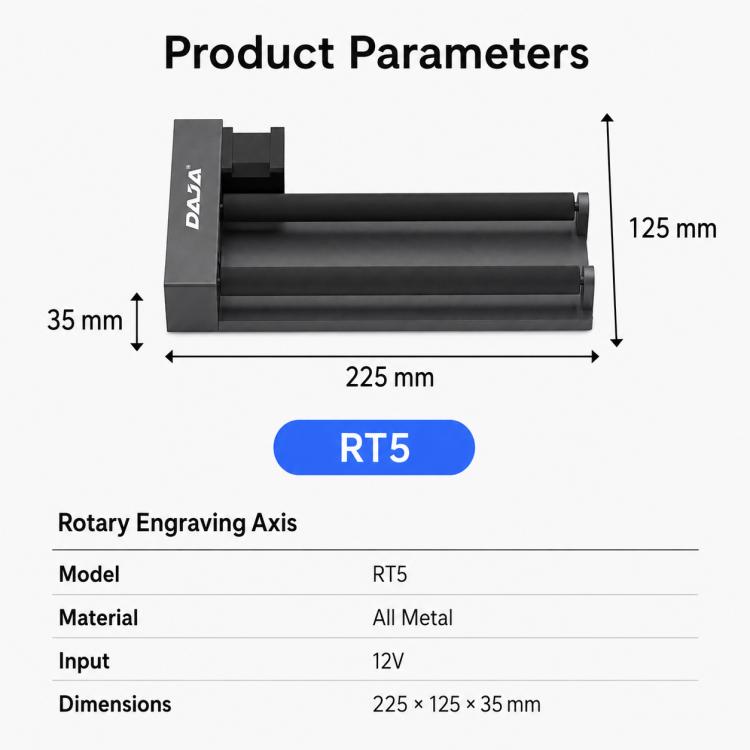

Specification:
| Package Weight |
| One Package Weight |
1.15kgs / 2.54lb |
| One Package Size |
24cm * 13cm * 5cm / 9.45inch * 5.12inch * 1.97inch |
| Carton Weight |
25.00kgs / 55.12lb |
| Carton Size |
48cm * 40cm * 35cm / 18.9inch * 15.75inch * 13.78inch |
| Loading Container |
20GP: 396 cartons * 20 pcs = 7920 pcs
40HQ: 921 cartons * 20 pcs = 18420 pcs |
|
