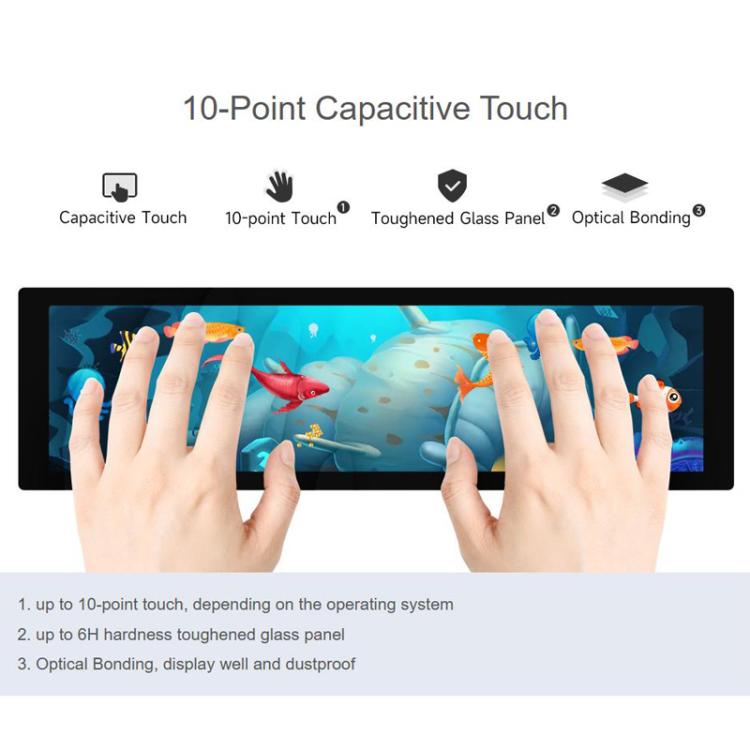

1. Supports up to 10-point touch; actual touch points depend on the software system
2. Tempered glass panel with 6H hardness
3. Backlight brightness adjustable via software
4. Full-laminated screen for high clarity and dust resistance

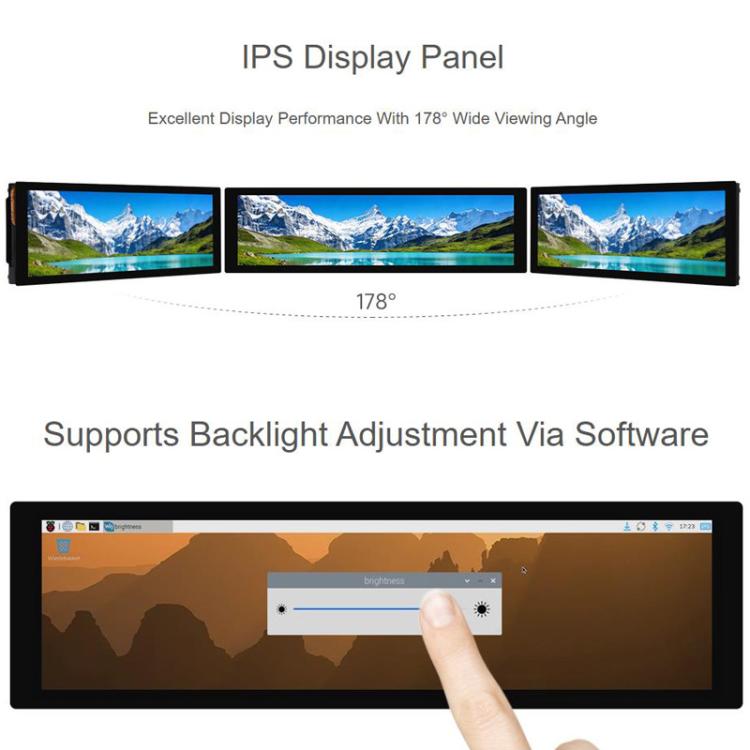

5. IPS display panel delivers excellent performance with a wide 178° viewing angle
6. This product defaults to portrait orientation with a resolution of 480 x 1920 (H x V). Landscape display can be enabled by modifying software settings

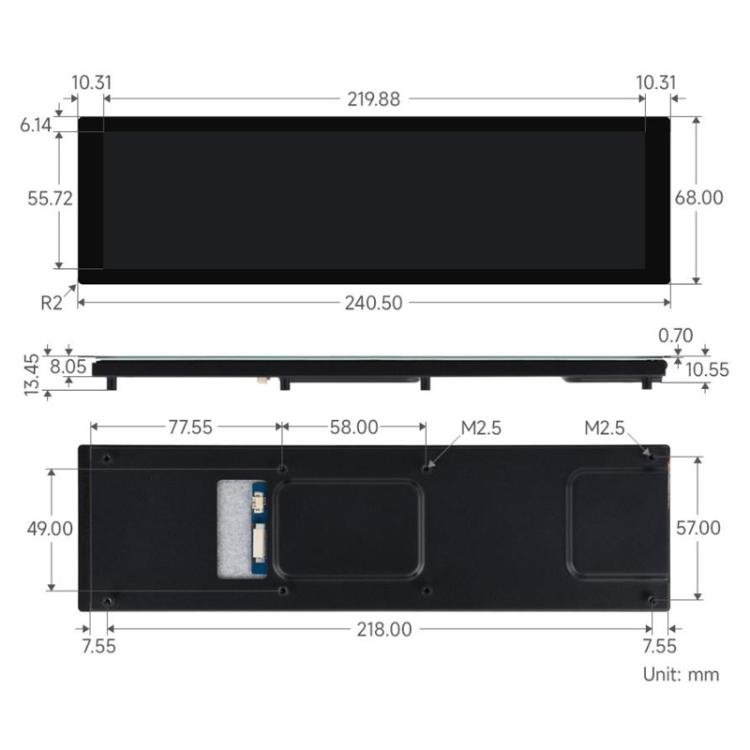

7. Size: about 24.5 x 6.8cm
Package contents:
– 8.8-DSI-TOUCH-A touchscreen x 1
– MIPI-DSI-Cable-12cm x 1
– MX1.25 2-pin to 2.54mm 3-pin adapter cable x 1
– FFC cable 22-pin 200mm (opposite direction) x 2
– MX1.25 2-pin to MX1.25 4-pin adapter about 150mm x 1
– Screw set x 1
Specification:
| Package Weight |
| One Package Weight |
0.30kgs / 0.67lb |
| One Package Size |
28cm * 12cm * 4cm / 11.02inch * 4.72inch * 1.57inch |
| Carton Weight |
12.00kgs / 26.46lb |
| Carton Size |
50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch |
| Loading Container |
20GP: 467 cartons * 36 pcs = 16812 pcs
40HQ: 1086 cartons * 36 pcs = 39096 pcs |
|
