1. Input voltage: DC 3.2~40V
2. Output voltage: 1.25~35V
3. Output current: 3A
4. Output ripple: Less than 30mv
5. Switching frequency: 65Khz
6. Working temperature: -45 to 85 degrees Celsius

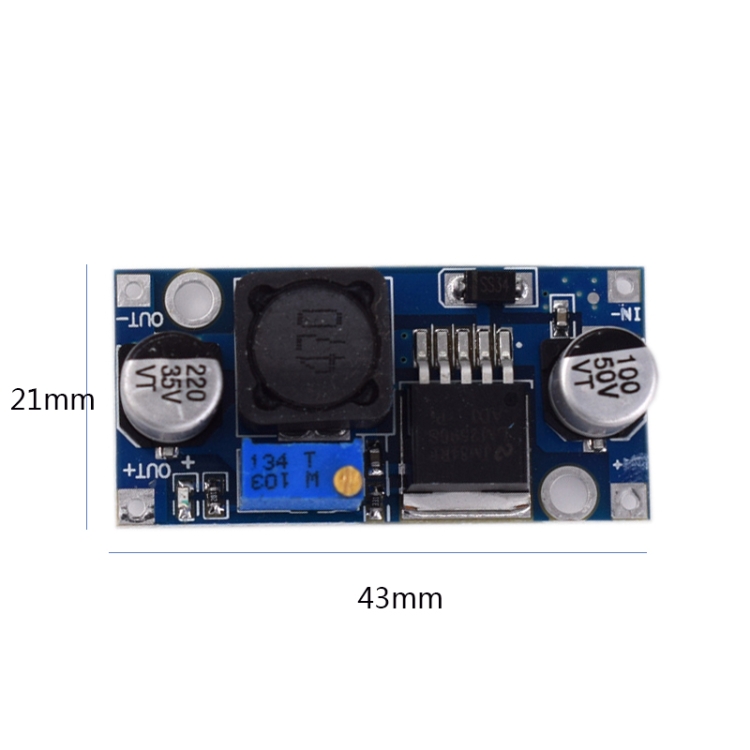

7. Size: 43x21x14mm
8. Note: This is a step-down module, and the input voltage needs to be higher than the output voltage. The output current is greater than 2.5A (or the output power is greater than 10W), please add a heat sink to work for a long time
Specification:
| Package Weight |
| One Package Weight |
0.20kgs / 0.45lb |
| One Package Size |
8cm * 5cm * 8cm / 3.15inch * 1.97inch * 3.15inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
42cm * 26cm * 42cm / 16.54inch * 10.24inch * 16.54inch |
| Loading Container |
20GP: 581 cartons * 146 pcs = 84826 pcs
40HQ: 1349 cartons * 146 pcs = 196954 pcs |
|
