1. Rated current: 175A
2. Fusing current: 300A
3. Rated voltage: 6-12-24-32V

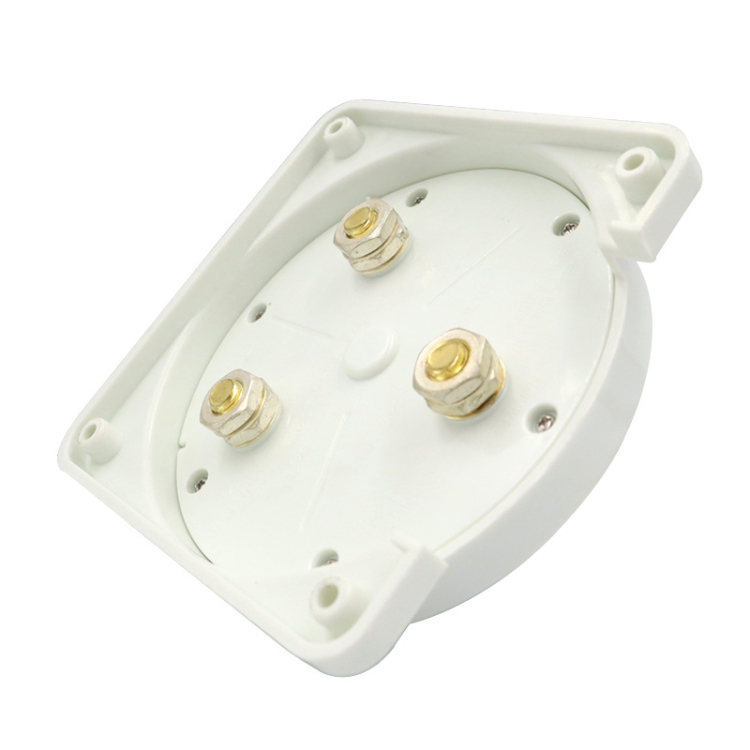

4. Product material: the shell is plastic and the bolt is copper tinned

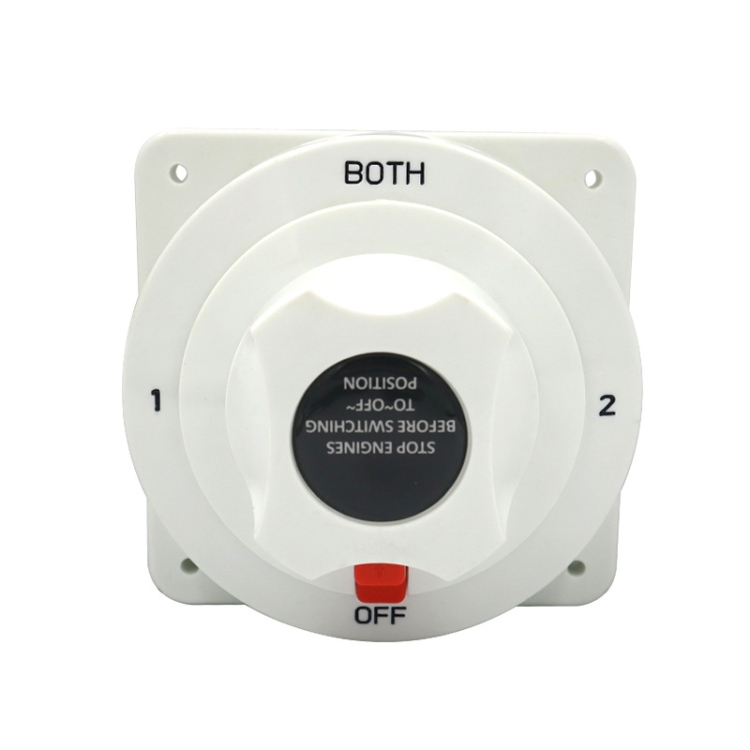

5. Product use: OFF position: two batteries or battery boards are completely disconnected
BOTH position: Two batteries or panels work at the same time
No. 1 position: No. 1 battery works
No. 2 position: No. 2 battery works
6. Product function: prevent leakage, protect the power supply, disconnect the battery safely
7. Product list:
– Power off switch x 1
– Copper terminal block x 3
– Heat Shrink Tube x 3
Specification:
| Package Weight |
| One Package Weight |
0.55kgs / 1.21lb |
| One Package Size |
14cm * 14.2cm * 8.5cm / 5.51inch * 5.59inch * 3.35inch |
| Carton Weight |
30.11kgs / 66.38lb |
| Carton Size |
52cm * 40cm * 40cm / 20.47inch * 15.75inch * 15.75inch |
| Loading Container |
20GP: 320 cartons * 50 pcs = 16000 pcs
40HQ: 744 cartons * 50 pcs = 37200 pcs |
|
