Features

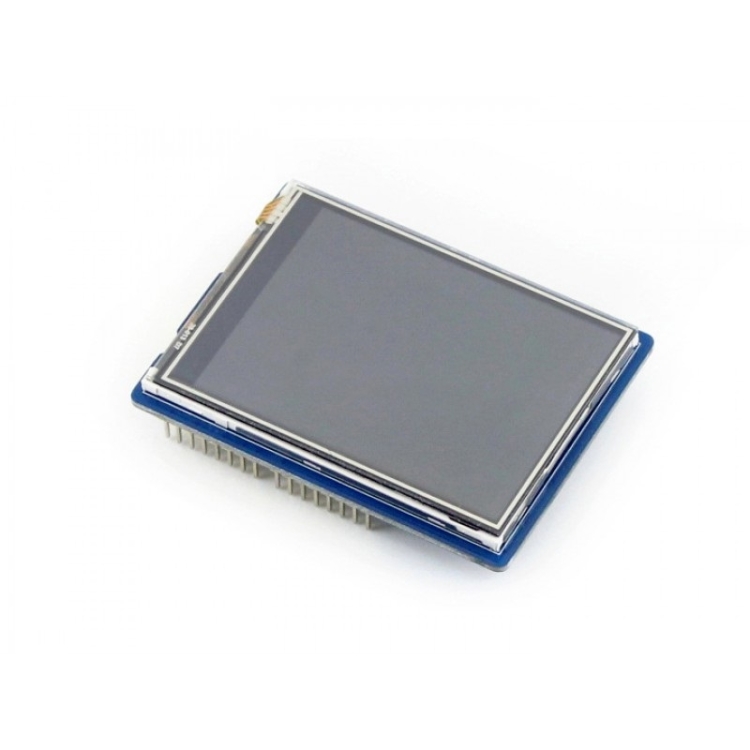

1. Resistive touch screen TFT LCD, 2.8inch, 320×240 resolution

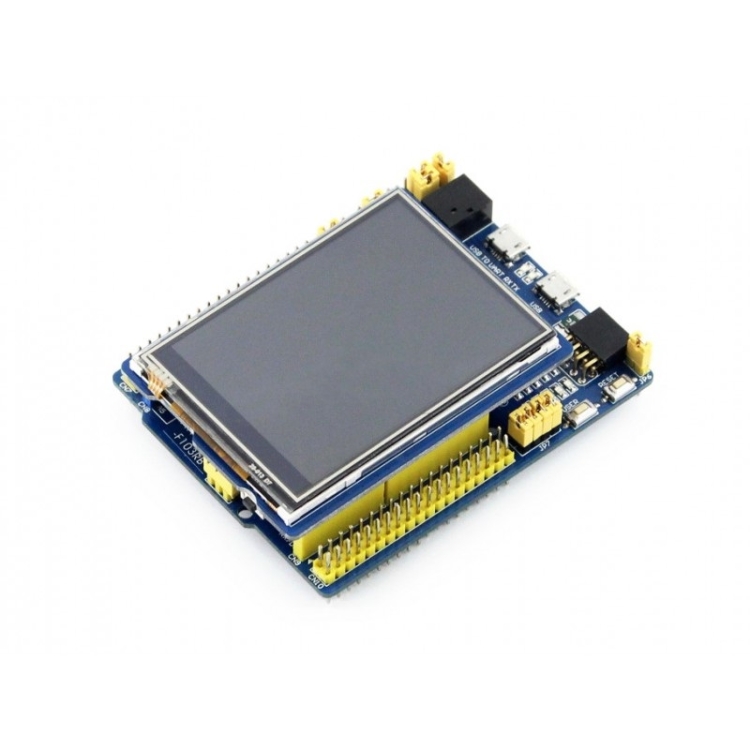

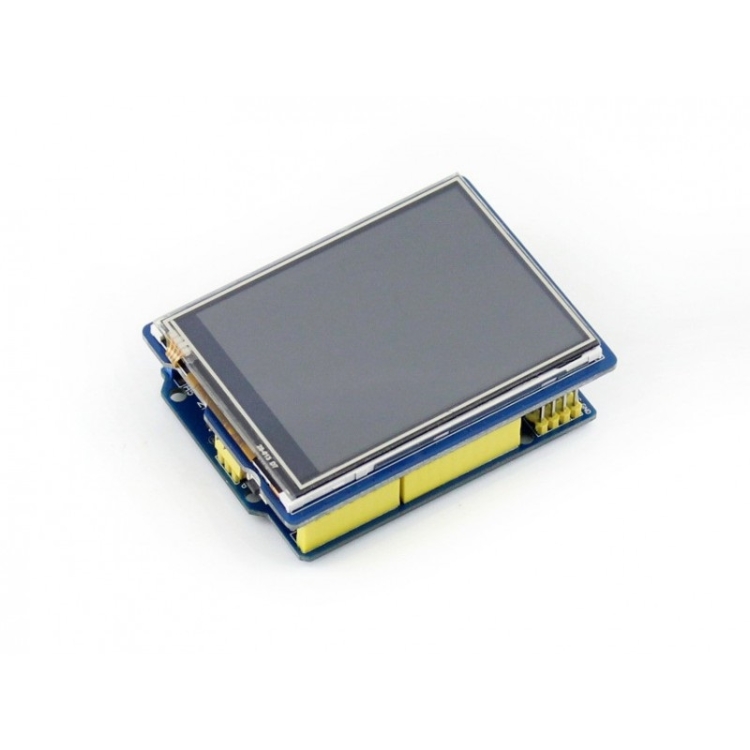

2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
4. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Backlight adjustable by program, lower power consumption
Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
4. LCD Controller: HX8347D
5. Touch Screen Type: Resistive
6. Touch Screen Controller: XPT2046
7. Colors: RGB, 65K colors
8. Resolution: 320×240 (Pixel)
9. I/O Voltage: 3.3V/5V
Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.18lb |
| One Package Size |
8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
56cm * 36cm * 40cm / 22.05inch * 14.17inch * 15.75inch |
| Loading Container |
20GP: 330 cartons * 840 pcs = 277200 pcs
40HQ: 767 cartons * 840 pcs = 644280 pcs |
|
